Draining Solution Tank

A-Quik-Fill Valve
B-Cap
C-Suction Valve
D-Pressure Valve
E-Bypass Valve
F-Solution Tank Valve

causym CAUTION: Spray system can contain hazardous material which can cause serious injury or death to you or others. Wear protective clothing, eyewear, and gloves. Drain solution tank in an area where people, animals, vegetation and water supply etc., cannot be contaminated.

causym CAUTION: Quik-Fill valve (A) can contain hazardous materials which can poison causing serious injury or death to you or others. Before removing Quik-Fill cap, make sure Quik-Fill valve is turned off.

1. Verify Quik-Fill valve is closed.

2. Open lock levers and remove cap (B).

3. Verify suction valve (C) in "SOLUTION TANK" position.

4. Verify pressure valve (D) in "SPRAY" position.

Shown In Closed Position

OUO6092,0000E11 -19-29MAR07-1/2

5. Turn bypass valve (E) to "NORMAL" position.

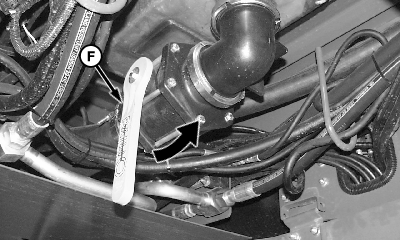

6. Open solution tank valve (F) if closed.

7. Connect nurse tank hose to Quik-Fill or place suitable container under Quik-Fill to catch solution.

8. Open Quik-Fill valve.

9. After solution has drained close Quik-Fill valve.
