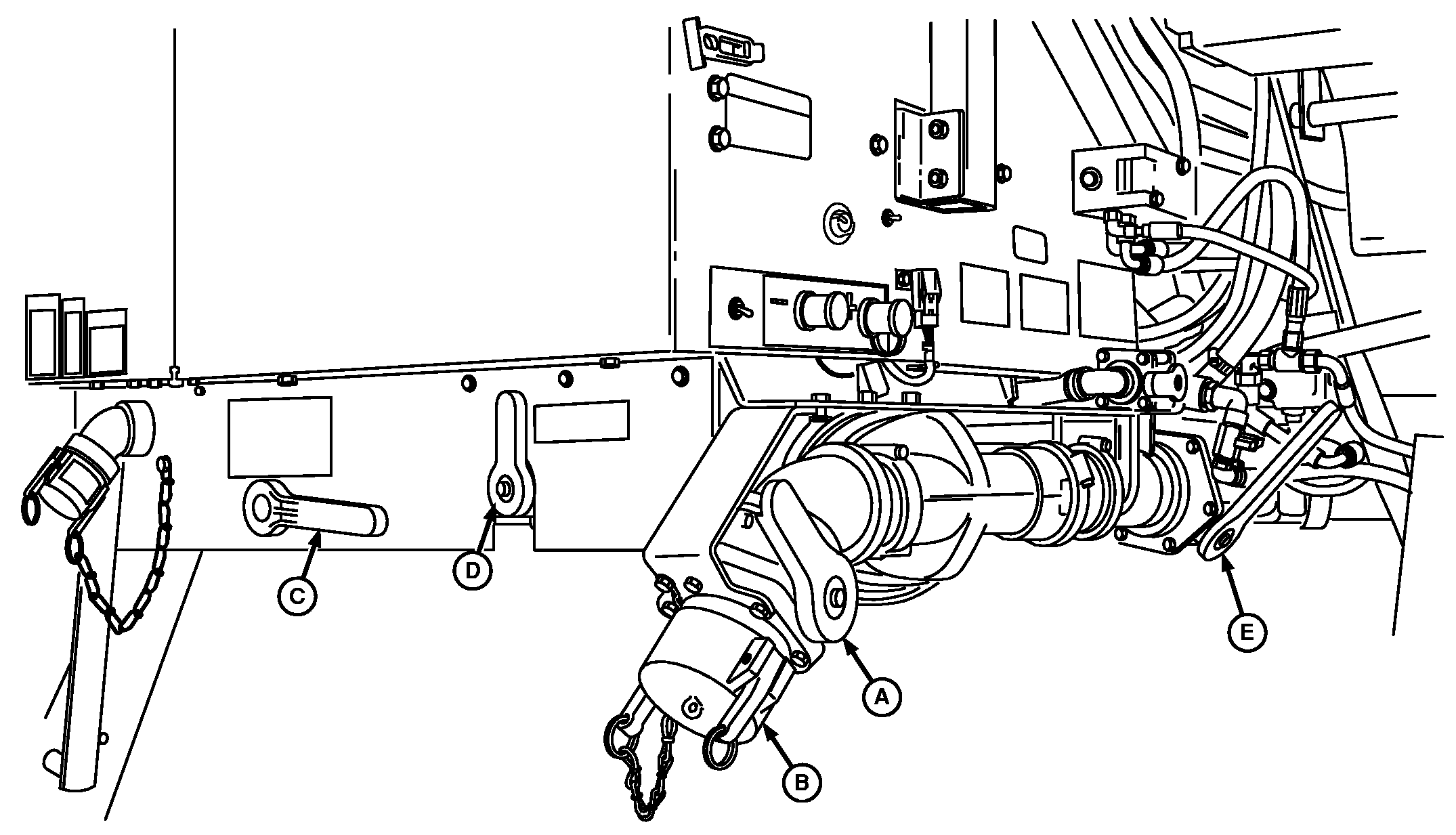

A-Quik-Fill Valve
B-Cap

C-Suction Valve

D-Pressure Valve

E-Bypass Valve

CAUTION: Spray system can contain hazardous material which can cause serious injury or death to you or others. Wear protective clothing, eyewear, and gloves. Clean filter in a area where people, animals, vegetation and water supply etc. cannot be contaminated.

NOTE: Clean boom supply line strainers if the following conditions exist:

• Pump fails to obtain maximum flow rate

• Pump fails to maintain dead head pressure

• Application rates fluctuate

2. Turn pressure valve (D) to "SPRAY" position.

3. Turn bypass valve (E) to "BYPASS" position.

OUO6092,0000E12 -19-29MAR07-1/2

CAUTION: Do not close the strainer shut-off valve with the solution pump running. This can trap pressure in the system that can be hazardous when opening strainers for cleaning.

4. Close strainer valve (A).

CAUTION: Do not drain solution onto the ground. Drain into a container. Drain solution in an area where people, animals, vegetation and water supply, etc., cannot be contaminated.

5. Remove plug(s) (B) to allow strainer to drain into a bucket or suitable container.

6. Unscrew ring (C) and remove strainer cover.

7. Remove screen and wash with clean water.

NOTE: With dual strainers the finer screen (typically 80 mesh) goes into rear strainer housing.

8. Install screen and cover on housing.

9. Install plug.

10. Open strainer valve.

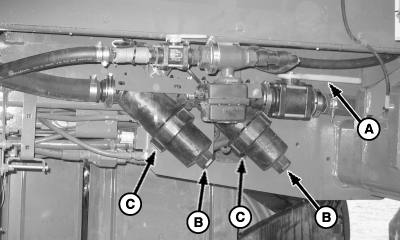

A-Plug
B-Ring
C-Housing

OUO6092,0000E12 -19-29MAR07-2/2
