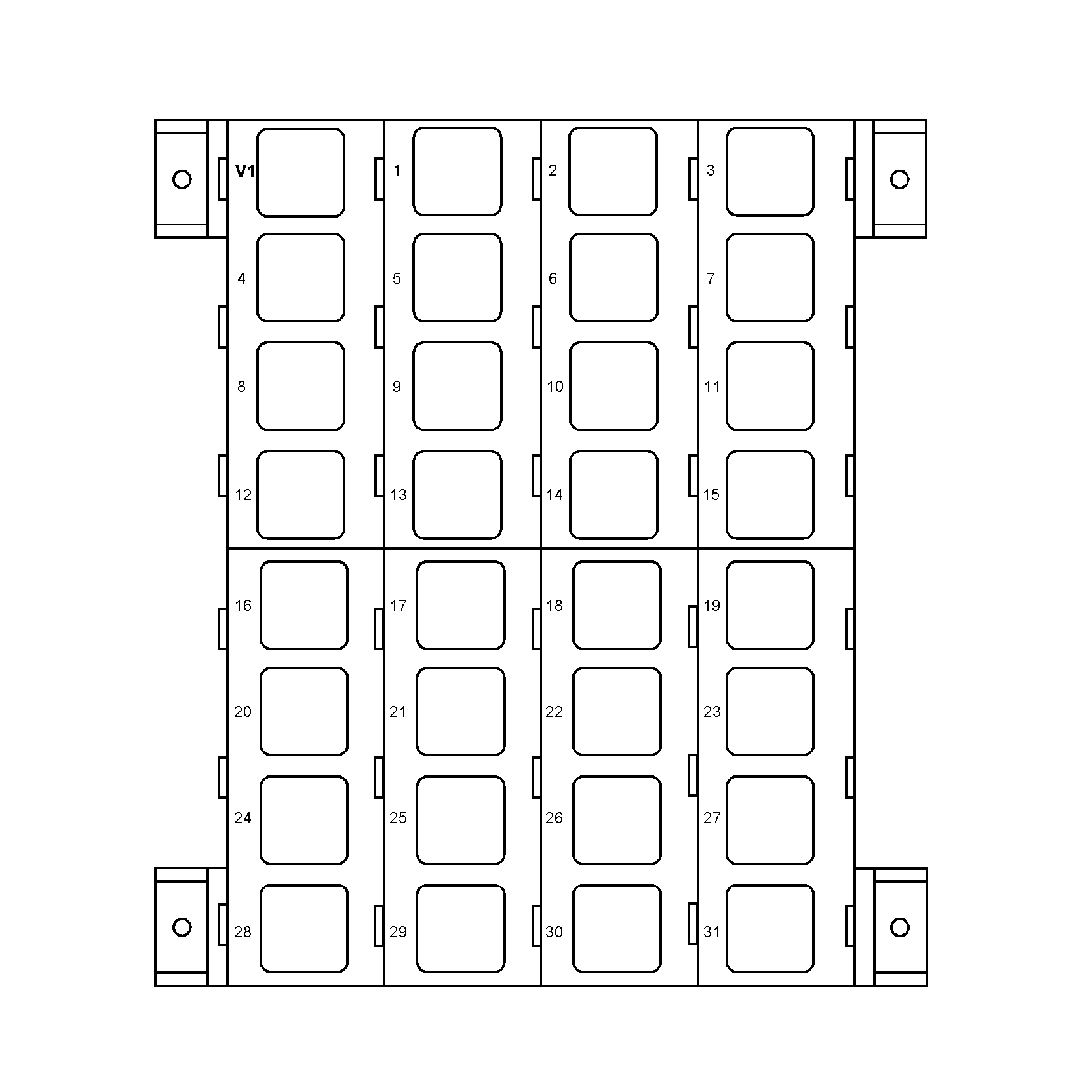

V1-Flash Lamp Diodes-Roof Lamp Control Diodes
1-Front Shift Relay
2-Load Sense Jamming Relay
3-Reverse Boost Relay
4-ELX1 Relay
5-Accessory Power Relay
6-Traction Control Relay
7-Steering Lights Relay
8-Wiper Relay
9-Wiper Latch Relay
|
10-Wiper Pulse Relay
11-Cab Blower Relay
12-ELX2 Relay
13-Cab Pressure Blower Relay
14-Air Conditioner Clutch Relay
15-Neutral Start Relay
16-BHC Logic and Valve Relay
17-Standard Hood Lights Relay
|
18-Optional Hood Lights Relay
19-Left-Hand Solution Valve Power Relay
20-Park Brake Relay
21-Rear Shift Relay
22-Auxiliary Plug Relay
23-Horn Relay
24-Chassis Lights Relay
25-Auxiliary Lights Relay
26-Hi/Low Enable Lights Relay
|
27-Hi/Low Select Lights Relay
28-Right-Hand Warning Light Relay
29-Left-Hand Warning Light Relay
30-Brake Light Relay
31-Right-Hand Solution Valve Power Relay
|
