Tighten Wheel Hardware

Check torque on wheel hardware. Tighten wheel mounting nuts (A) in a crisscross pattern to specification.

Specification

Wheel Mounting Nuts -Torque (dry) 700 N·m  (515 lb-ft)

IMPORTANT: Damage to planetary hub and wheel can occur if the correct mounting nut torque is not maintained. Tighten nuts in a crisscross pattern to specification. Tighten wheel mounting nuts after first 1 hour of use and every 10 hours thereafter until correct torque is maintained. Check wheel nuts torque after every 100 hours of use.

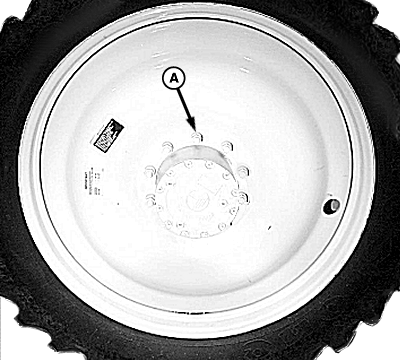

A-Wheel Mounting Nuts

N54596

OUO6092,0000ED7 -19-14JUN07-1/1
