Adjust Rearview Mirrors

Adjust mirror (A) for desired rear visibility by pivoting mirror heads.

Move left-hand mirror to filed position, as shown, from transport position (B).

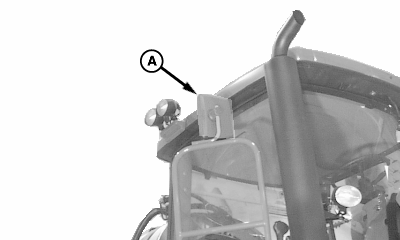

A-Right-hand Cab Mirror

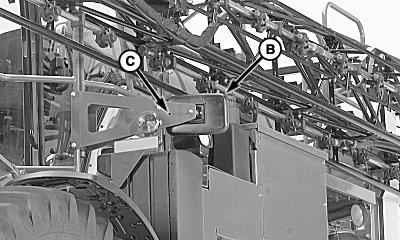

B- Left-Hand Mirror
C-Transport Position

N66753
N76803

OUO6092,0000EE3 -19-03JUL07-1/2

NOTE: Undercarriage mirror can be positioned for taller crops by using two top holes in right-hand tread adjust frame, or for shorter crop conditions using two lower holes.

To change undercarriage mirror height (mirror located on right front axle):

1. Remove cap screws (A) and flange nuts.

2. Align mirror bracket with two upper holes (B).

3. Reinstall cap screws and flange nuts.

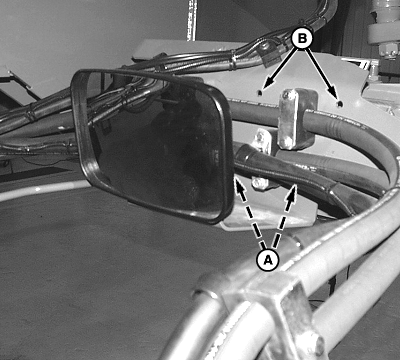

A-Cap Screws
B-Holes
