Filling Fuel Tank

causym CAUTION: Shut off engine before filling fuel tank.

NOTE: Fuel tank capacity is 496L (131 gal).

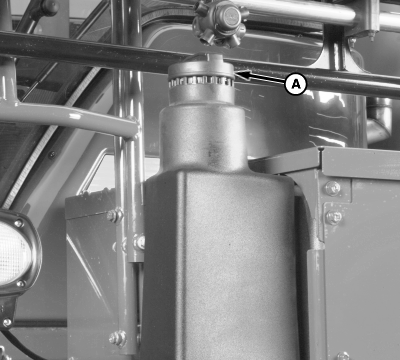

Remove fuel tank cap (A). Fill tank with proper grade of diesel fuel. (See Lubrication And Maintenance section for diesel fuel specifications.)


A-Fuel Tank Cap

N76702

OUO6092,0000EE6 -19-08JUN07-1/1
