Filling Rinse Tank Using Left-Hand Rinse Fill

IMPORTANT: Damage to rinse tank and surrounding structure can occur when filling at a high rate if tank lid is not removed. Remove tank lid when filling at high rates to avoid damage.

1. Remove fill cap (A).

2. Connect fill hose and fill tank to desired level.

3. After tank is filled, remove fill hose.

4. Re-attach fill cap.

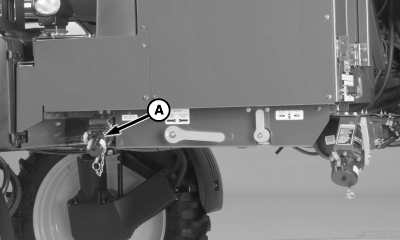

A-Fill Cap

OUO6092,0000EE7 -19-08JUN07-1/1
