Solution Strainers

Strainers are used to help keep dirt and debris from entering and damaging the solution pump, nozzles, and other components. Strainer screens should be removed and cleaned to maintain solution flow.

NOTE: With dual strainers the finer screen (typically 80 mesh) goes into rear strainer housing (C).

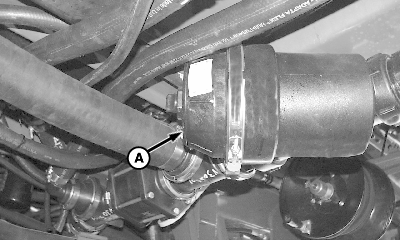

A-Fill Strainer 30 Mesh (Optional)

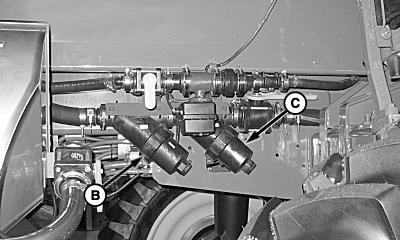

B-Boom Supply Line Strainer- 50 Mesh (Standard)
C-Boom Supply Line Strainer- 80 Mesh (Optional)

OUO6092,0000EE8 -19-08JUN07-1/1
