Attach Lift Bracket

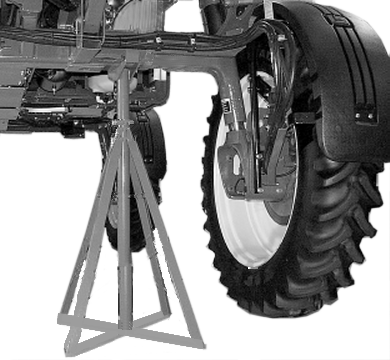

CAUTION: Avoid injury from a falling machine while jacking. Lift and support empty machine only. Only jack wheels using supplied lift bracket and support machine using John Deere JDG10393 shop stand or equivalent.

Before jacking a front wheel, turn it fully outward.

1. Empty solution tank (if necessary).

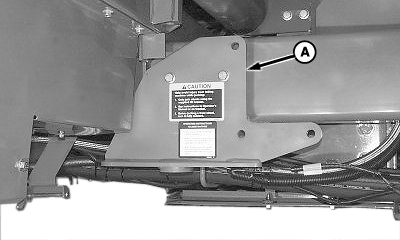

2. Remove lift bracket from storage position (A) on right-hand front frame rail.

3. Remove wheel shield and motor shield (if equipped).

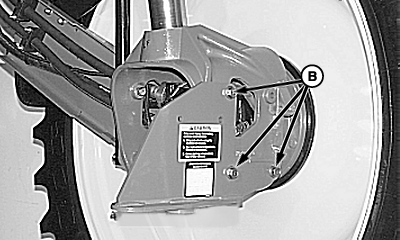

4. Attach lift bracket to machine in a horizontal position as shown with M16 x 80 cap screws (B) pointing toward rear of machine and flange nuts on inside of casting. Tighten nuts.

5. Place a floor jack or bottle jack under lift bracket and lift machine as required.

A-Storage Position
B-Cap Screws, M16 x 80

OUO6092,0000EEA -19-12JUN07-1/2

7. When finished using lift bracket, remove bracket and hardware. Install wheel shield and motor shields.

8. Return lift bracket to storage position.
