Adjusting Front Axle Toe-In

2. Adjust cylinder length by turning cylinder rod (B).

3. Repeat steps 1 and 2 for opposite side of machine.

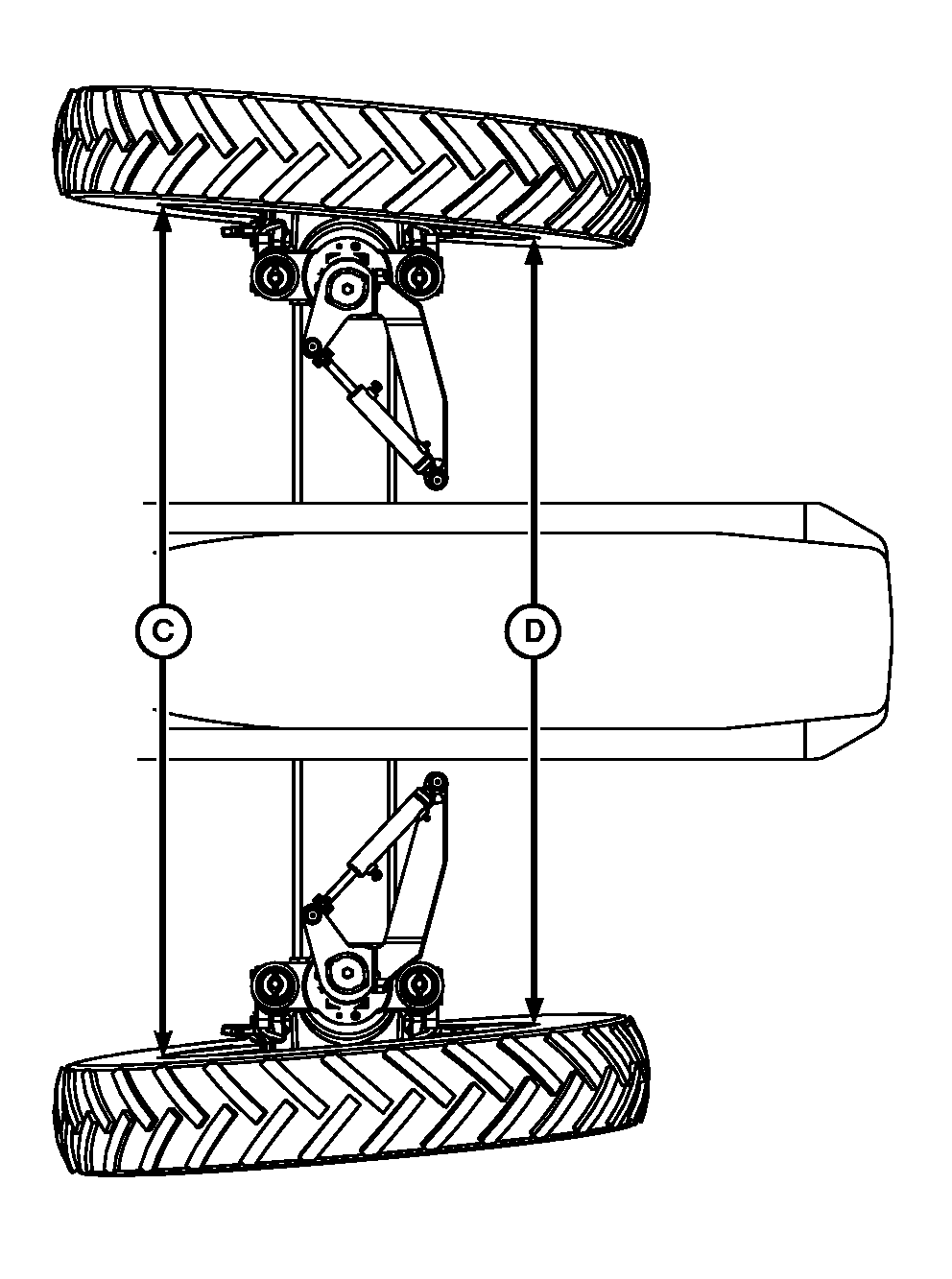

4. Move left and right tires evenly until difference between (C and D) are within specified range.

Specification

NOTE: With cylinders at half stroke, dimension (F) should be 10-25 mm (3/8-1 in.) less than dimension (E).

5. Tighten clamp on each side of machine.

6. Perform Check Front Axle Toe-In procedure to verify adjustments.

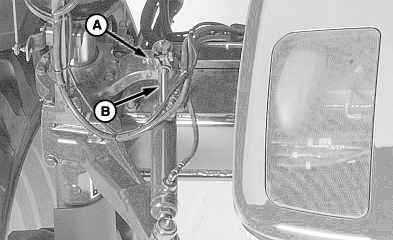

A-Clamp
B-Cylinder Rod
C-Dimension
D-Dimension

OUO6092,0000EEB -19-11JUN07-1/1
