Light Operation Table

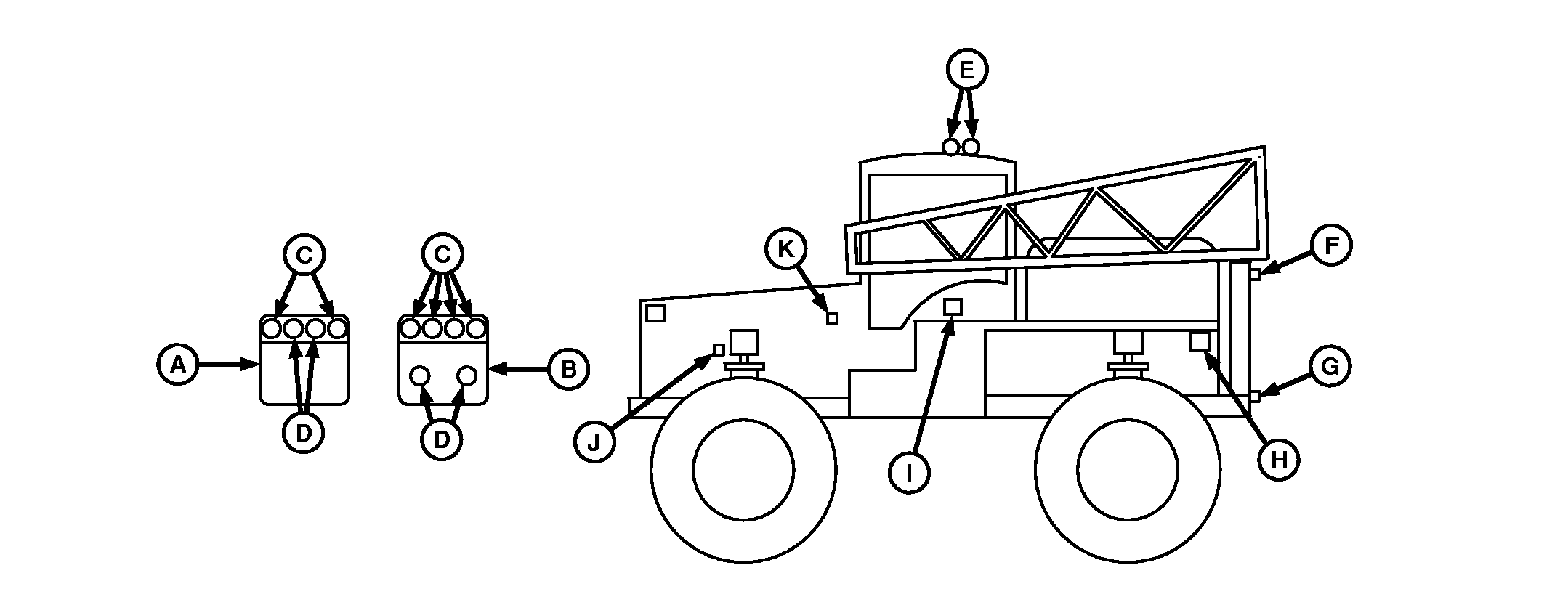

N76721


A-Standard Halogen Option Hood / Grill Lights
B-HID Option Hood / Grill Lights


C-Work Lights
D-HI/LOW Beams
E-Roof Floods


F-Rear Caution (Yellow)
G-Tail/Stop (Red)
H-Fill Station


I-Platform Floods
J-Steer Floods
K-Front Caution (Yellow)

ROAD LIGHT SWITCH DIMMER SWITCH LOW BEAM HIGH BEAM FILL STATION ROOF FLOODS STEER FLOODS HOOD WORK LIGHTS PLATFORM FLOODS HOOD WORK LIGHTS (HID ONLY)
OFF LOW OFF OFF OFF OFF OFF OFF OFF OFF
OFF HIGH OFF OFF OFF OFF OFF OFF OFF OFF
ROAD LOW ON OFF OFF OFF OFF OFF OFF OFF
ROAD HIGH OFF ON OFF OFF OFF OFF OFF OFF
FIELD 1 LOW ON OFF OFF OFF ON ON ON OFF
FIELD 1 HIGH OFF ON OFF OFF ON ON ON OFF
FIELD 2 LOW ON OFF ON ON ON ON ON ON
FIELD 2 HIGH OFF ON ON ON ON ON ON ON



OUO6092,0000EFB -19-12JUN07-1/2

ROAD LIGHT SWITCH WARN SWITCH TURN SIGNAL REAR TAIL (RED) FRONT / REAR CAUTION
OFF OFF OFF OFF OFF
OFF OFF ON OFF ON T
OFF ON OFF OFF ON W
OFF ON ON OFF ON T
ROAD OFF OFF ON ON W
ROAD OFF ON ON ON T
ROAD ON OFF ON ON W
ROAD ON ON ON ON T
FIELD 1 OFF OFF OFF OFF
FIELD 1 OFF ON OFF ON T
FIELD 1 ON OFF OFF ON W
FIELD 1 ON ON OFF ON T
FIELD 2 OFF OFF OFF OFF
FIELD 2 OFF ON OFF ON T
FIELD 2 ON OFF OFF ON W
FIELD 2 ON ON OFF ON T



ONT- Indicates that light is on when turn signal switch is on.

ONW- Indicates that light is on when hazard switch is on or when light switch is in road position.

Brake lights are independent of turn or light switches. With key in "Run" position, brake lights will illuminate when the service brake is pressed or the machine decelerates at a rate of 2 mph per second or greater.
