Checking Hydrostatic and Hydraulic Oil Level

NOTE: Place booms in boom rests and retract all hydraulic cylinders including tread adjust cylinders when checking oil level.

Hydraulic system capacity is approximately 163 L (43 gal) and reservoir capacity is 64 L (17 gal).

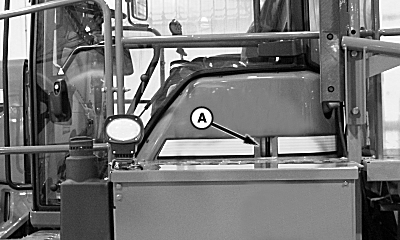

Hydraulic oil should be at 12 to 25 mm (1/2 to 1 in.) showing in sight tube (A). Add oil through opening at filler cap (B) if necessary. (See Fuels, Lubricants and Coolant section of machines Operators Manual for hydraulic oil specifications.)

A-Sight Tube
