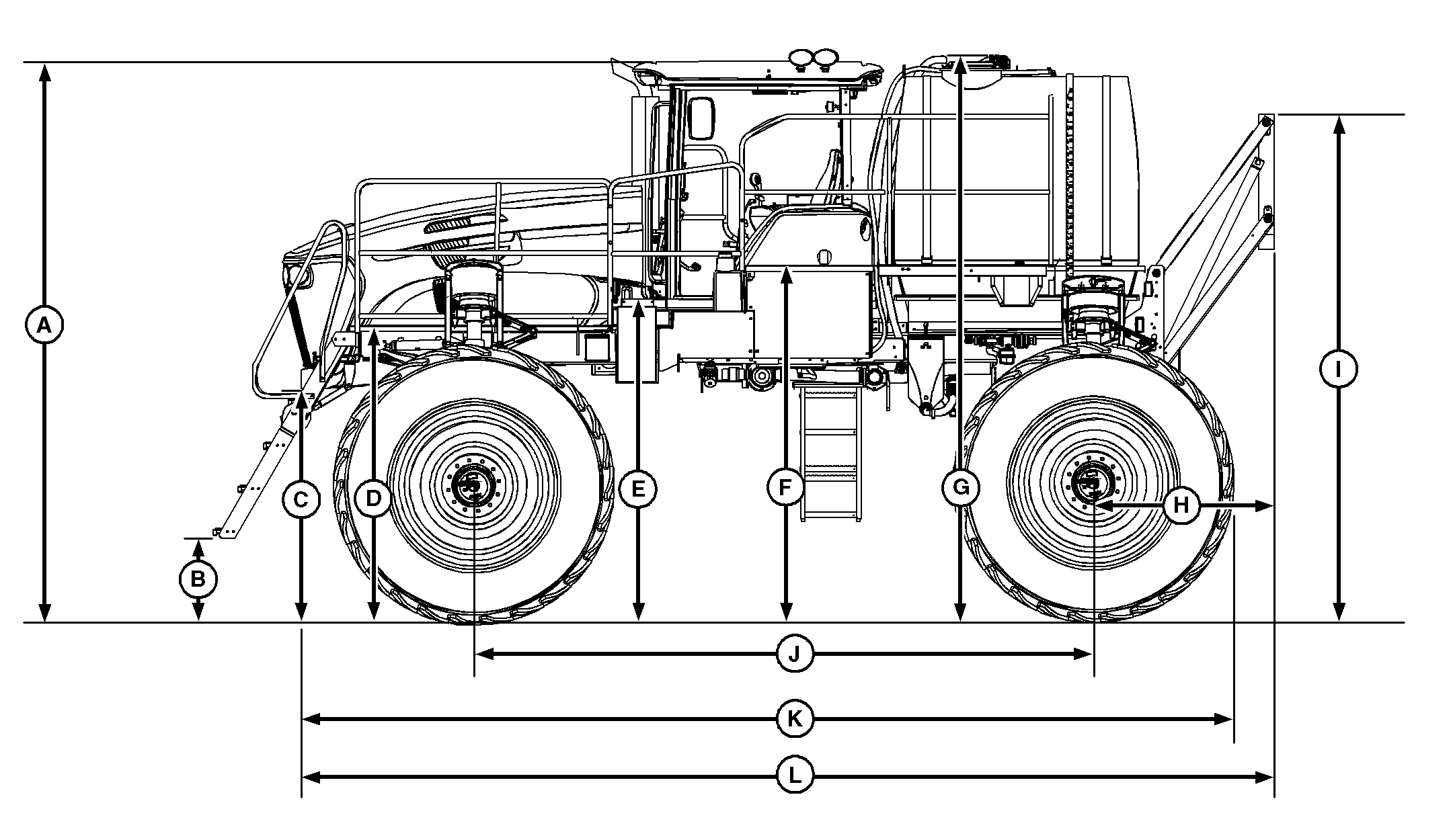

A-Cab Height-Springs Inflated, 3963 mm (156.0 in.)
A-Cab Height-Springs Deflated, 3861 mm (152.0 in.)
B-Bottom of Ladder, 533 mm (21 in.)
C-Under Frame Clearance, 1562 mm (61.5 in.)
|
D-First Platform Step, 1992 mm (78.4 in.)
E-Second Platform Step, 2096 mm (82.5 in.)
F-Top Platform, 2409 mm (94.8 in.)
G-Top Of The Eductor Fittings- Suspension Centered, 3909 mm (153.9 in.)
|
H-Tire Center-to-Rearmost Boom Point, 1676 mm (66.0 in.)
I-Highest Point on Boom In Lowest Cradle Position- 3832 mm (150.9 in.)
I-Highest Point on Boom In Highest Cradle Position-4115 mm (162.0 in.)
|
J-Wheelbase, 4300 mm (169.3 in.)
K-Front of Machine-to-Rear of Rear Tire, 6073 mm (239.1 in.)
L-Front of Machine-to-Rearmost Boom Point, 7554 mm, (297.4 in.)
|
