Operating BoomTrac Pro™
|
|
|
|
|
|

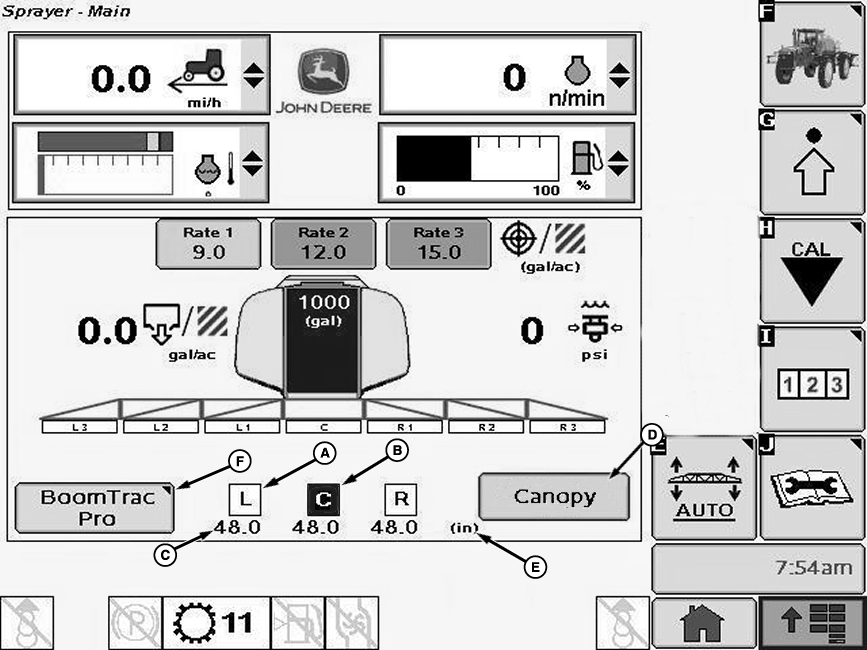

IMPORTANT: Display screens illustrated on the following pages are for reference only. Your actual screens may appear differently due to connection of optional devices, software version in use, or customization of screens. A BoomTrac Pro section will be show on Sprayer Main Page. A brief explanation of this section follows: The squares (A) around L, C, and R indicate that BoomTrac Pro is ready for operation. As BoomTrac |
Pro operates each section (L, C, or R) the letters will be highlighted (B) only while the particular section is actually moving. Once they meet their target height, the letters will no longer be highlighted.
The numbers (C) (48 in this example) below L, C, and R indicate the target heights that have been entered in the "BoomTrac Pro" setup page. |
|
BOOMTRAC PRO is a trademark of Deere & Company | OUO6092,0000FCF -19-13AUG07-1/3 |
|
The word "Canopy" (D) was an option also selected in the "BoomTrac Pro" setup page. This indicates that the user is operating in the "Canopy" mode. The other option is "Ground" mode. The "(in.)" (E) indicates that the target heights are in inches. The box surrounding "Canopy" or "Ground" mode indicates that BoomTrac Pro is active (meaning that |
the resume switch on the multifunction control handle has been pressed and BoomTrac Pro is actively controlling the booms).
Pressing the BoomTrac Pro button (F) takes the operator to BoomTrac Pro setup page. |
OUO6092,0000FCF -19-13AUG07-2/3 |
|
Activating The System

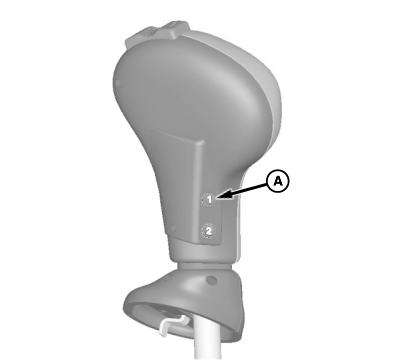

NOTE: The operator needs to be in the seat to activate. The system will also deactivate if the operator gets out of the seat. To activate the BoomTrac Pro system, press the BoomTrac Resume Switch (A) on the resume pod of the multifunction control handle. This activates the system and begins to actively control the boom tilt functions relative to the contours of the ground. The system is turned off by activating any boom function (ex. tilt, fold, raise, lower). You must press the BoomTrac Resume Switch on multifunction control handle again to resume BoomTrac Pro. The operator can also press the resume button again while BoomTrac Pro is engaged and the centerframe will adjust to the target height if it has changed since first engaging. NOTE: If the BoomTrac Pro system has NOT been activated, meaning the activation code has never been entered, the "L", "C", and "R" will NOT have boxes around them. |
|
CAUTION:
Stand clear of booms when BoomTrac is activated. Booms will move when objects are moved within sensor range.
OUO6092,0000FCF -19-13AUG07-3/3 |
