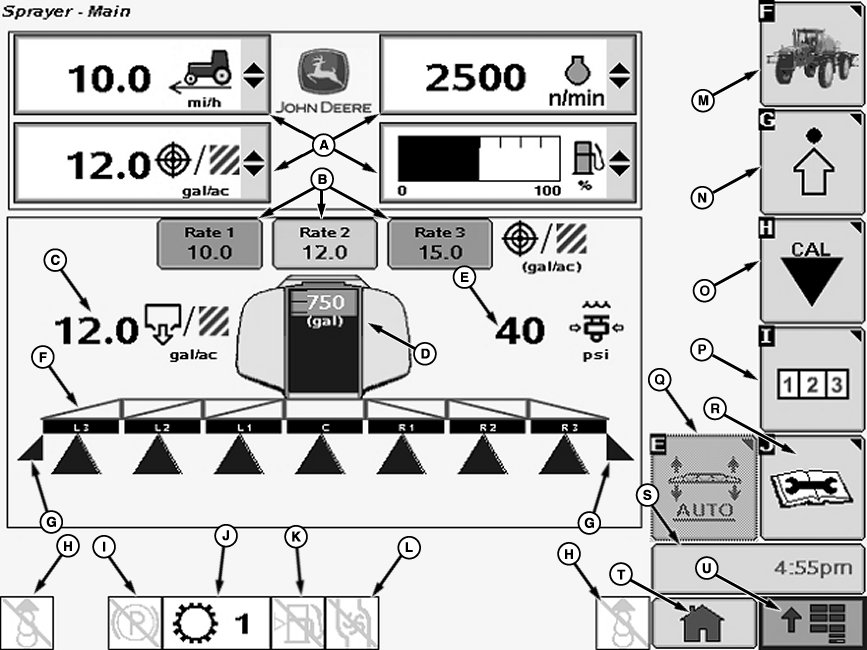

A-Information Drop Down Menu
B-Pre-programmed Target Rates Per Area
|
C-Actual Rate Per Area
D-Estimated Remaining Tank Volume
E-Pressure
F-Boom Sections Status
G-Left or Right Fence Row Nozzle-When Spraying
H-Left Or Right Foam Drop Status
|
I-Machine in Park
J-Speed Range Selected
K-Fuel Status Icon
L-Solution Pump Status
M-Sprayer Main Softkey
N-Setup Menu Softkey
O-Calibration Menu Softkey
P-Totals Softkey
|
Q-BoomTrac™ Pro Softkey -If Equipped
R-Diagnostics Softkey
S-Message Center \ Time Display
T-Home Button
U-Menu Button
|
