Reset Spray Calibrations to Factory Default Settings

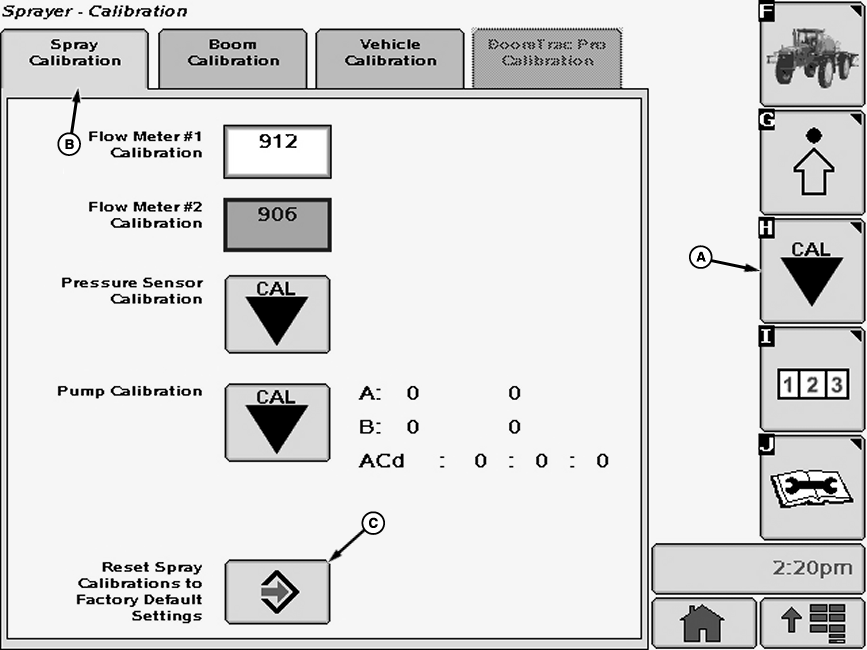

N77309

1. Select the Calibration softkey (A) to view the setup menu.

2. Select the Spray Calibration tab (B).

3. Select calibration icon (C) next to Reset Spray Calibrations to Factory Default Settings. Reset Spray Calibrations to Factory Default Settings screen will appear.

OUO6092,0000FDA -19-15AUG07-1/2

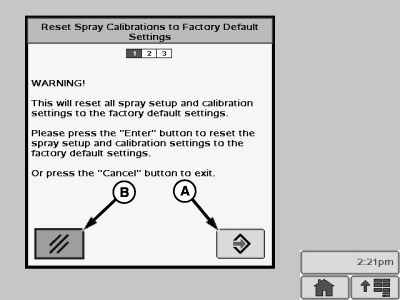

4. Follow instructions on screen. When finished select "Enter" button (A) to proceed with resetting calibrations to defaults or select "Cancel" button (B) to exit.


A-Enter Button
B-Cancel Button

N77310

OUO6092,0000FDA -19-15AUG07-2/2
