Lubricate Suspension Assemblies-Daily

Lubricate front and rear suspension assemblies with ONLY John Deere SD Polyurea Grease. Use three pumps of grease at each fitting (A).

IMPORTANT: Use of other greases in the suspension system is not recommended. Use of other greases can result in premature wear of the suspension components.

NOTE: Three grease fittings are on each front suspension assembly. Two grease fittings are on each rear suspension assembly.

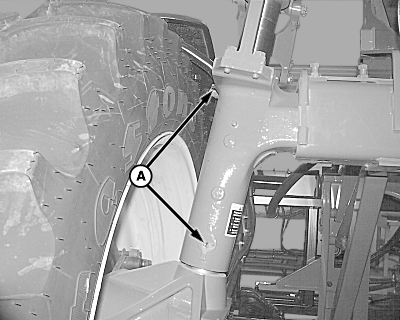

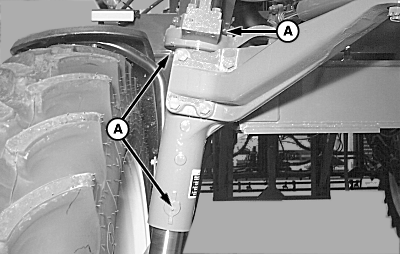

A-Grease Fitting

OUO6092,00010D2 -19-07FEB08-1/1
