Operating in the Field

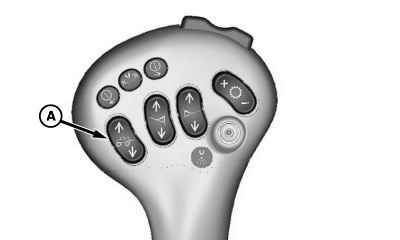

1. Unfold boom and press raise/lower switch (A) to position boom at desired operating height.

2. Setup SprayStar control unit for your particular application. (See SprayStar System section for proper setup procedure.)


A-Raise/Lower Switch

N67612

OUO6092,00010ED -19-21FEB08-1/5

3. Push forward on solution pump switch (A) to engage solution pump.


A-Solution Pump Switch

N66744

OUO6092,00010ED -19-21FEB08-2/5

4. View spray operation display on monitor screen.

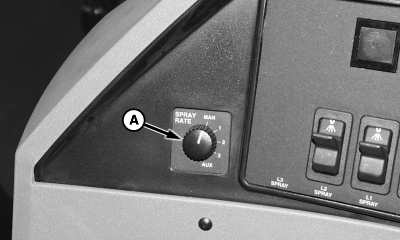

5. Turn rate control switch (A) to desired application rate (1, 2 or 3) or to manual pressure setting (MAN).

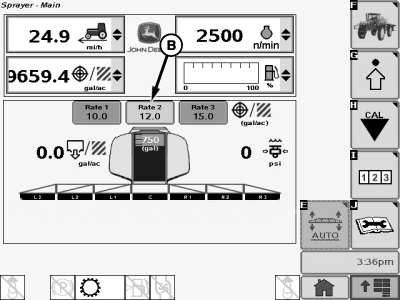

NOTE: Rate selected (B) will be highlighted on monitor screen.

If equipped with Swath Control Pro the "AUX" position on rate control switch is used for the map based rate.


A-Rate Control Switch
B-Selected Rate

N66489
N74874

OUO6092,00010ED -19-21FEB08-3/5

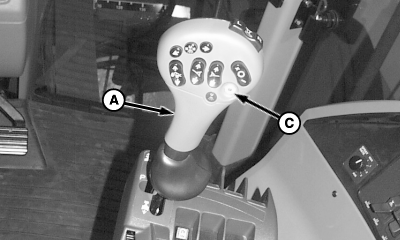

6. Push multifunction control handle (A) slowly forward to start forward motion.

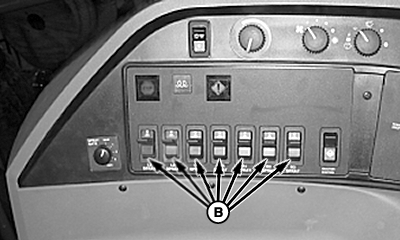

7. Lift all boom section switches (B).

NOTE: Enabled booms have black fill color indication on the display.

8. Press master ON/OFF switch (C) to start spraying operation.

NOTE: Actively spraying boom sections have cone indication under the boom section on the display.


A-Multifunction Control Handle
B-Boom Section Switches
C-Master ON/OFF Switch

N67613
N74733

7 Boom Section Switches (80-100 ft Boom)

OUO6092,00010ED -19-21FEB08-4/5

NOTE: Spray system shut-down is not immediate. Solution flow will continue for a few seconds after pressing master ON/OFF switch. For best response time and coverage, turn spray off as you slow for row end.

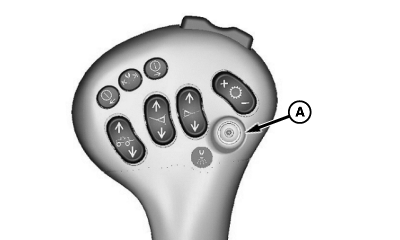

9. At row end, press master ON/OFF switch (A) to stop spraying. All other switches can remain in pre-set positions.

NOTE: Spray system start-up is not immediate. To overcome delayed response, press master ON/OFF switch while moving forward to start spraying just before solution is actually needed.

10. When aligned with next row, press master ON/OFF switch to resume spraying.

N66488


A-Master ON/OFF Switch

OUO6092,00010ED -19-21FEB08-5/5
