Preparing Machine with 24.4, 27.4 and 30.5 m (80, 90 and 100 ft) Boom for Transport on Semi-Tractor Trailer

causym CAUTION: Suspension linkages can cause injury to you or others from movement when inflating or deflating air springs. Keep hands and body away from suspension linkage.

1. Empty solution tank and rinse tank.

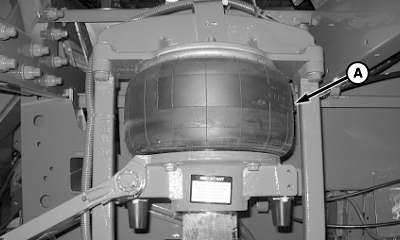

2. Deflate front and rear suspension air springs (A).

3. Set wheels at 3048 mm (120 in.) tread setting.

N74370

Rear Air Spring Shown


A-Suspension Air Springs

OUO6092,00010F2 -19-12NOV08-1/7

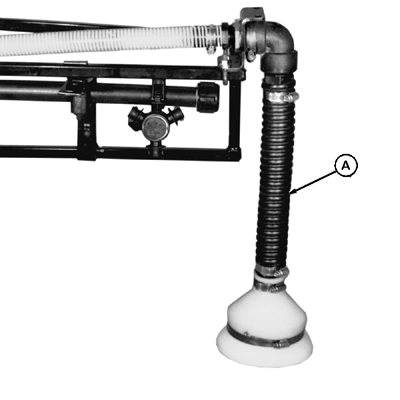

4. Remove foamer boot (A) (if equipped) at end of each boom.


A-Foamer Boot

N42190EQ

OUO6092,00010F2 -19-12NOV08-2/7

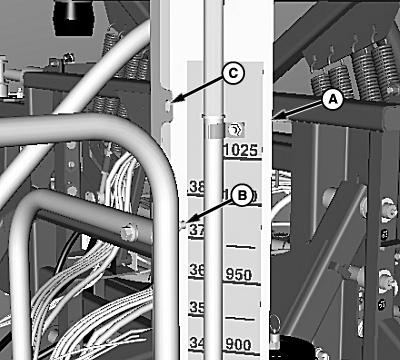

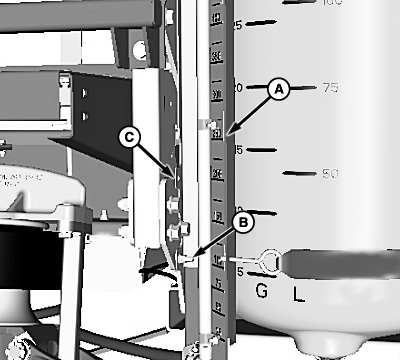

5. 4830 Only- Lower sight gauge (A) from transport position (B) down to field position (C).


A-Sight Gauge
B-Transport Position
C-Field Position

N76804

Upper Attachment Point

N76947

Lower Attachment Point

OUO6092,00010F2 -19-12NOV08-3/7

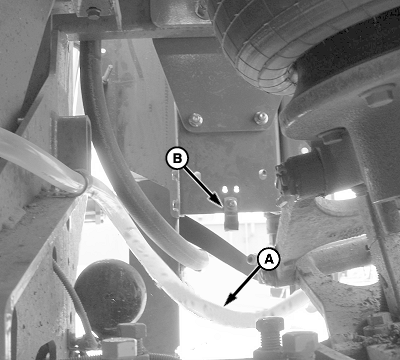

6. sight gauge lowered to transport position, remove sight gauge hose (A) from existing p-clamp (B).

7. Completely fold booms.


A-Sight Gauge Hose
B-P-clamp

N77311

OUO6092,00010F2 -19-12NOV08-4/7

IMPORTANT: Do NOT tie boom wings to transport trailer.

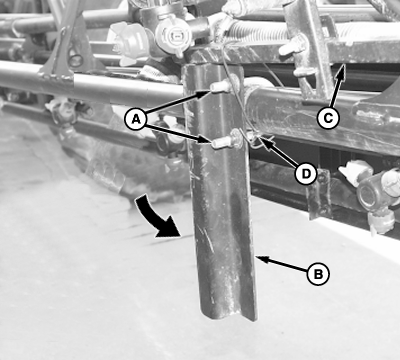

8. Loosen nuts (A) and pivot breakaway section pad (B) down to position shown. Tighten nuts.

9. Position breakaway section (C) tight to inner section and tie at location (D).

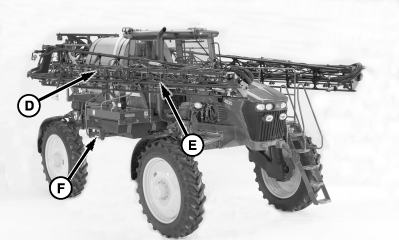

10. Tie outer boom assembly to the intermediate boom section at location (E).

11. Raise ladder (F) on right-hand side of machine and tie band in transport position.


A-Nuts
B-Breakaway Section Pad
C-Breakaway Section
D- Tie Location
E- Tie Location
F-Ladder

N67864
N80037

OUO6092,00010F2 -19-12NOV08-5/7

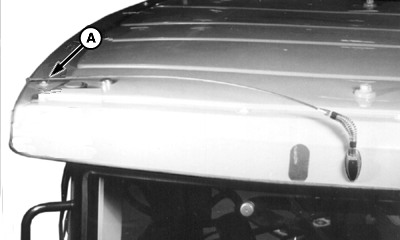

12. Place antenna in retainer (A) on cab roof.

13. Drive machine onto trailer or truck.


A-Retainer

N74947

OUO6092,00010F2 -19-12NOV08-6/7

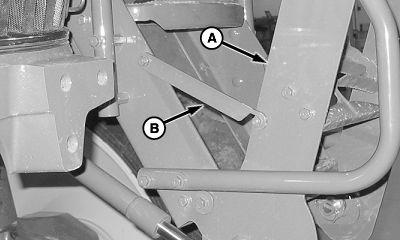

14. Get down from machine and raise lower portion of ladder (A) into transport position. Retain with hook strap (B) as shown.


A-Ladder
B-Strap

N76718
