Lubricate Center Boom Section

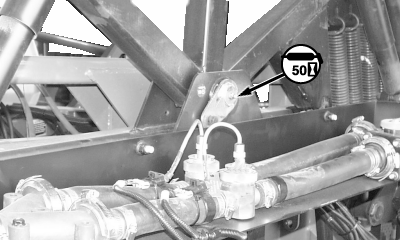

Center Pivot Bearings
|
One Fitting Each
|
|
|
OUO6092,00010F4 -19-21FEB08-1/7
|

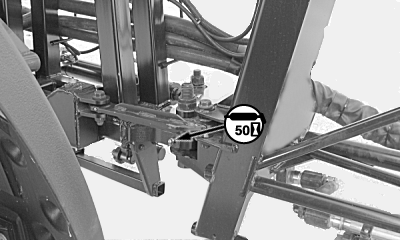

Pivot Assembly Connection Pin
|
One Fitting
|
|
|
OUO6092,00010F4 -19-21FEB08-2/7
|

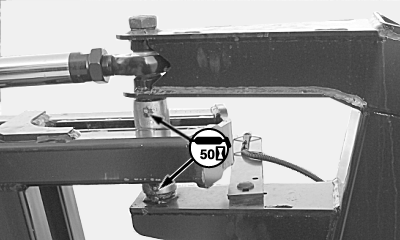

Roll Bias Link
|
Two Fittings
|
|
|
OUO6092,00010F4 -19-21FEB08-3/7
|

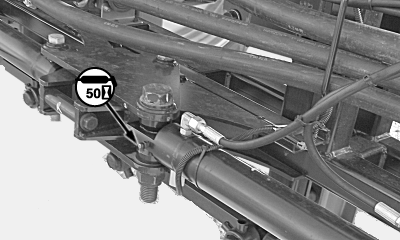

Upper Pivot Bushing
|
Two Fittings Each Side of Section
|
|
|
OUO6092,00010F4 -19-21FEB08-4/7
|

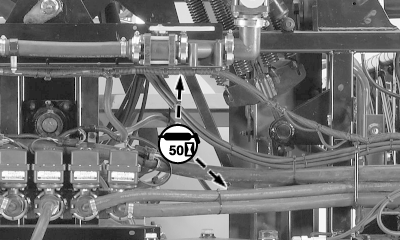

Lower Pivot Bushing
|
One Fitting Each Side of Section
|
|
|
OUO6092,00010F4 -19-21FEB08-5/7
|

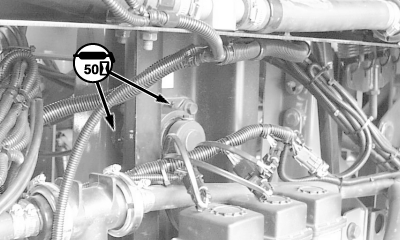

Inner Wing Fold Cylinder Base End
|
One Fitting
|
|
|
OUO6092,00010F4 -19-21FEB08-6/7
|

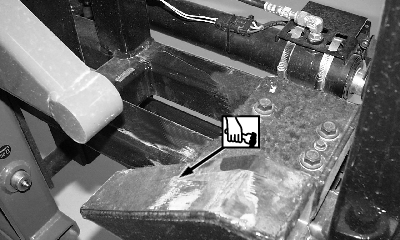

Roll Lockout Bracket Contact Area
|
Brush on Grease Daily - Each End of Section
|
|
|
OUO6092,00010F4 -19-21FEB08-7/7
|
|
