Visually Inspect Service Brake Components-100 Hours

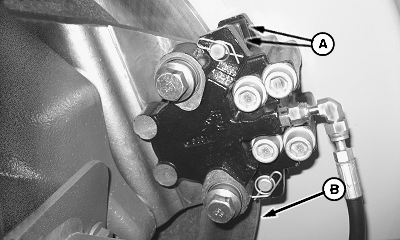

Visually inspect brake pads (A) and rotors (B) on both rear wheels for deep grooves, signs of overheating, or premature wear. If any of these conditions exists, (see your John Deere dealer).


A-Brake Pads
B-Rotor

N80277

OUO6092,000116A -19-13MAR08-1/1
