Diagnostic Tests

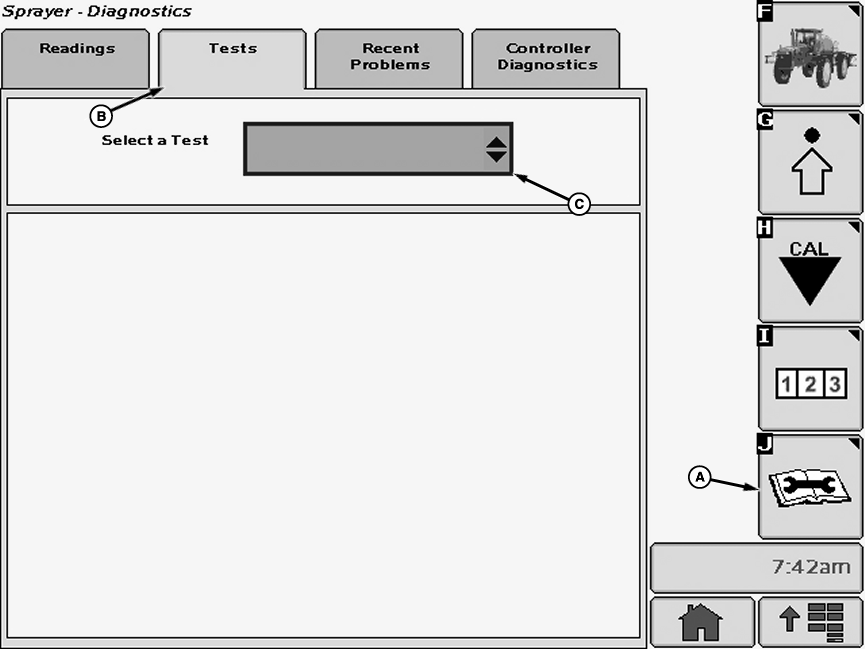

N80348


A-Diagnostics Softkey

B-Tests Tab

C-Drop-Down Menu



1. Select the Diagnostics softkey (A) to view the sprayer diagnostics menu.

2. Select the "Tests" tab (B).

3. Select a test from the tests drop-down menu (C).

OUO6092,00011DC -19-02APR08-1/1
