Filling Solution Tank with Nurse Tank Pump While Adding Chemicals Through Eductor

causym CAUTION: Read carefully the directions printed on the chemical manufacturer's labels before handling chemicals or you may be exposed to hazardous materials which could poison and injure you.

IMPORTANT: Do not add chemical to solution tank until just before field use. Follow the chemical manufacturer's instructions for mixing the spray solution to obtain the desired application rate and effect.

1. Start machine.

causym CAUTION: Quik-Fill valve (A) can contain hazardous materials which can poison causing serious injury or death to you or others. Before removing Quik-Fill cap, make sure Quik-Fill valve is turned off.

2. Verify Quik-Fill valve is closed.

3. Open lock levers and remove cap (B).

4. Connect nurse tank fill hose to Quik-Fill adapter and close lock levers.

5. Open nurse tank valve and Quik-Fill valve.

NOTE: Tank sump valve requires air pressure to open, engine must be running.

6. Move load switch (C) to "NURSE PUMP" position. This will open tank sump valve.

7. Start nurse tank pump.

N76795
N62623

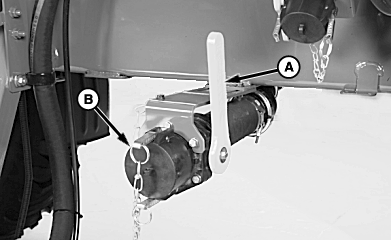

A-Quik-Fill Valve
B-Cap

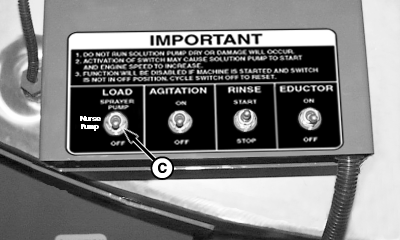

C-Load Switch

OUO6092,0000F93 -19-22JUN07-1/2

8. Lower eductor (A) and raise lid.

9. Move eductor switch (B) to "ON" position.

NOTE: Engine speed will automatically increase to 1800 rpm.

10. Open eductor hopper valve (C) (handle parallel with solution hose) to allow chemicals to be drawn from eductor hopper.

11. Pour chemicals into eductor.

12. Open eductor rinse valve (D) (turn clockwise) to rinse eductor hopper.

13. Place chemical container over rinse nozzle (E) in hopper and push down on container to rinse.

14. After rinsing chemical containers, close eductor rinse valve.

15. Turn eductor switch to "OFF" position.

16. Close eductor hopper valve.

17. Place lid back on hopper and return eductor back to its original position.

18. After solution tank has filled, close Quik-Fill valve and nurse tank valve.

19. Turn off nurse tank pump.

20. Move load switch to "OFF" (down) position.

21. Remove fill hose from Quik-Fill adapter and replace cap.

N63883
N63882
N63884


A-Eductor

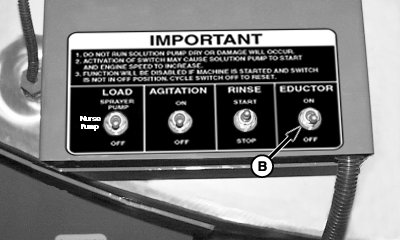

B-Eductor Switch
C-Eductor Hopper Valve
D-Eductor Rinse Valve

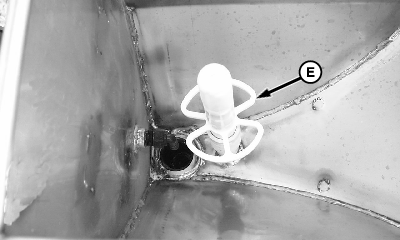

E-Rinse Nozzle

OUO6092,0000F93 -19-22JUN07-2/2
