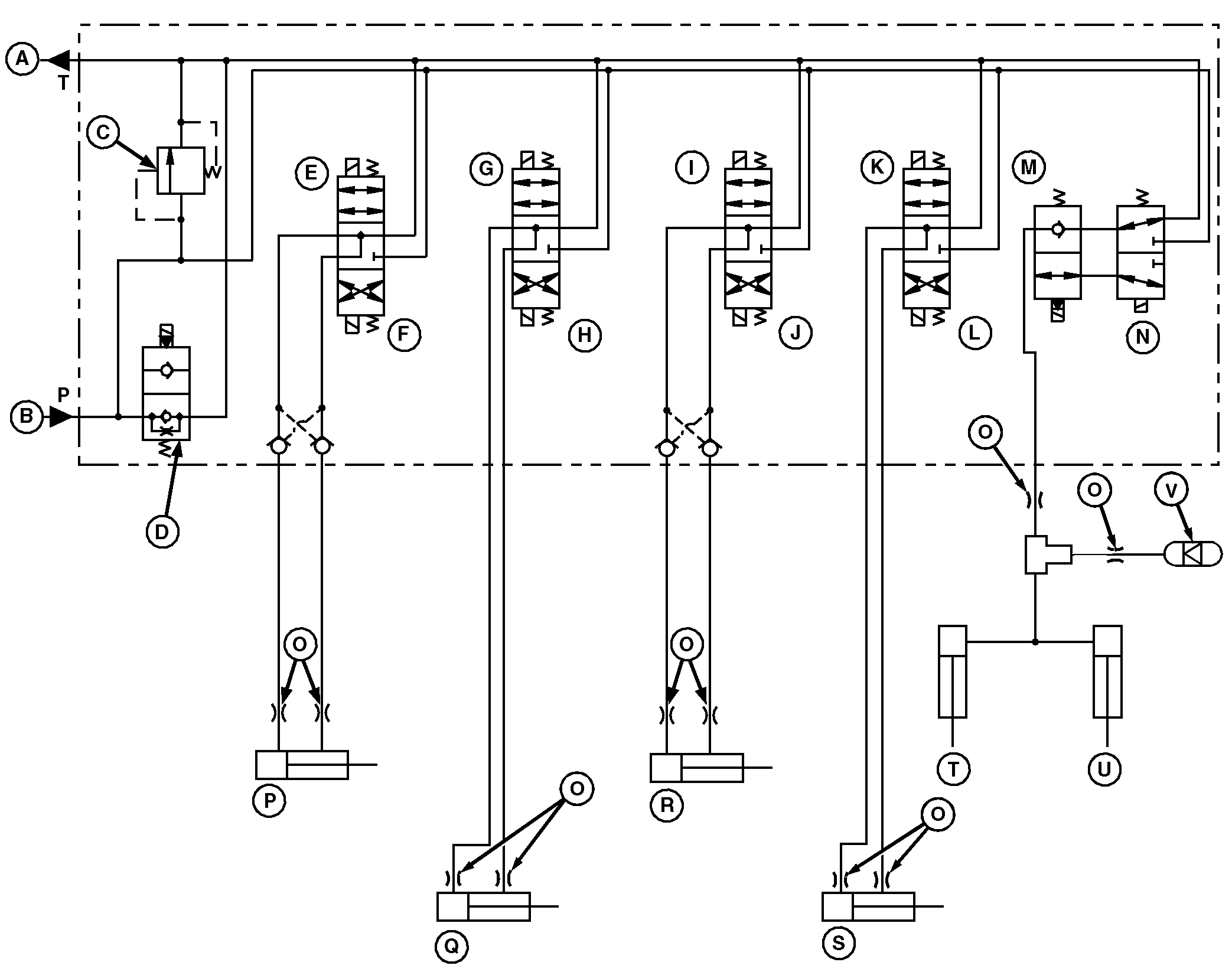

A-Return Oil
B-Pressure Oil
C-Relief Valve
D-Unloader Solenoid
E-Left Boom Folding Solenoid
F-Left Boom Unfolding Solenoid

G-Left Boom Lower Solenoid
H-Left Boom Raise Solenoid
I-Right Boom Folding Solenoid
J-Right Boom Unfolding Solenoid
K-Right Boom Lower Solenoid

L-Right Boom Raise Solenoid
M-Center Boom Lower Solenoid
N-Center Boom Raise Solenoid
O-Orifices, (10 Used)
P-Left Folding Cylinder

Q-Left Leveling Cylinder
R-Right Folding Cylinder
S-Right Leveling Cylinder
T-Left Lift Cylinder
U-Right Lift Cylinder
V-Accumulator

NOTE: Orifice sizes vary on cylinders.

Folding cylinders use 0.042 in. orifices at cylinder/hose connections.

Leveling cylinders use 0.052 in. orifices at cylinder/hose connections.

Lift cylinders use one 0.046 in. orifice at boom valve/double tee connection.

Accumulator uses 0.0785 in. orifice at accumulator/hose connection.

OUO6092,0000237 -19-18JUL01-1/1
