Install Doffer Column

1. Clean top of doffer column and mounting flange to remove any debris from mating surfaces.

2. Insert doffer column into row unit.

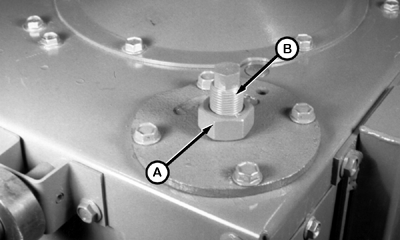

3. If necessary, turn adjusting screw (B) clockwise until mounting flange meets top of doffer column. Leave nut (A) loose.


A-Nut
B-Adjusting Screw

N42182YH

AG,OUO1011,1234 -19-21MAR06-1/4

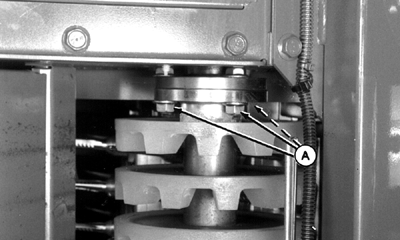

4. Install flange head cap screws (A) and sequentially tighten to specifications.

Specification

Flange Head Cap Screws -Torque 50 N·m (37 lb-ft)


A-Flange Head Cap Screws

N42166UD

AG,OUO1011,1234 -19-21MAR06-2/4

NOTE: Replace plastic clips with new ones after they have been removed.

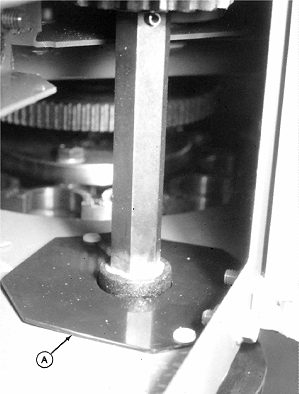

5. Make sure inner cabinet seal (A) is retained with plastic clips.


A-Inner Cabinet Seal

N91323Q1

AG,OUO1011,1234 -19-21MAR06-3/4

6. Pack doffer bearing housing half-full of John Deere Moly High-Temperature (EP) Grease, or equivalent. (See GREASE in Fuels, Lubricants and Coolants section.)

7. Position bearing housing so grease fitting is to the rear of the unit.

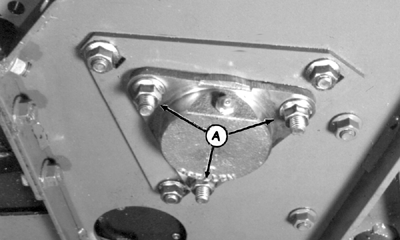

8. Slide housing through bottom of cabinet onto doffer column and attach with flange head cap screws and nuts (A). Tighten to specifications.

Specification

Lower Bearing Housing Hardware -Torque 50 N·m (37 lb-ft)

9. Adjust doffer column height before operating row unit. (See ADJUSTING DOFFER HEIGHT in this section.)

a. Doffer column height is correct when:

  • Doffer pads are parallel to top of spindles when spindles are fully under pads.
  • Spindles lightly touch (zero clearance) doffer pads as they enter the doffer assembly and clear when leaving.

b. If doffer column is not correctly adjusted, the following occurs:

  • If doffers are set too high, spindles will not clean properly.
  • If doffers are set too low, excessive wear of doffer pads, premature spindle bushing and barb wear, and possible bending of the cam followers and picker bar will occur.

10. Reinstall and/or tighten grease fitting. Lubricate bearing housing using John Deere Moly High Temperature (EP) Grease or equivalent. (See GREASE in Fuels, Lubricants And Coolants section.)

N42169JA


A-Nuts

AG,OUO1011,1234 -19-21MAR06-4/4
