Auxiliary Power Outlet Strip and Diagnostic Connector

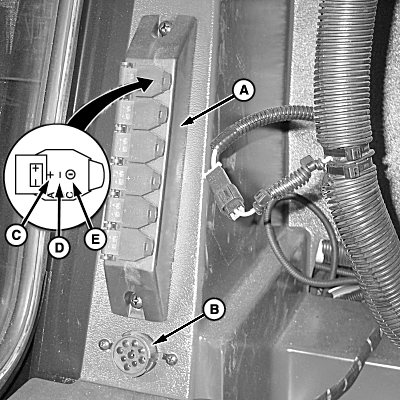

Auxiliary power outlet strip (A) is located at lower rear corner of right-hand side window. Strip provides six key-switched or unswitched power outlets for auxiliary equipment. The maximum combined current draw for all outlets is 10 amps.

See your John Deere dealer for available harness connection systems.

A diagnostic connector (B) is also provided.

Spade terminal (C) is direct positive power at all times.

Spade terminal (D) is ground.

Spade terminal (E) is auxiliary power (operates with key switch on).

A-Auxiliary Power Outlet Strip
B-Diagnostic Connector
C-Spade Terminal (Direct Positive Power)
D-Spade Terminal (Ground)
E-Spade Terminal (Positive, Key Switched On)

OUO1078,000055C -19-09FEB07-1/1
