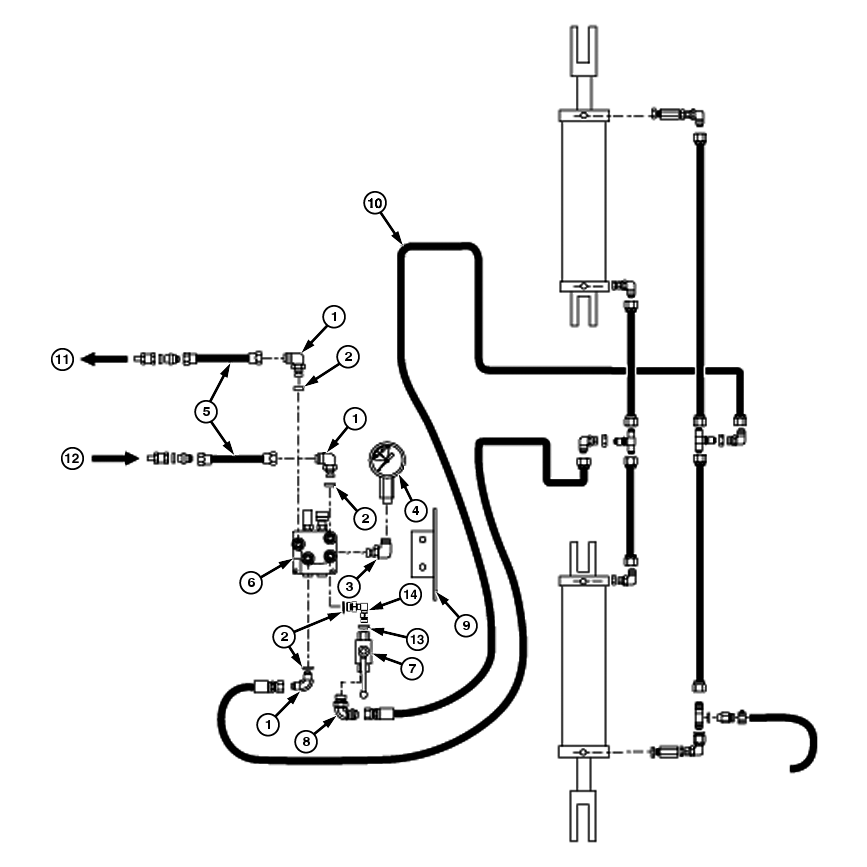

Wing Fold Hydraulic Diagram—3-Section Machines with Hydraulic Wing Control

N97878
N97878-UN-04JUN12

Wing Fold Hydraulics With Hydraulic Wing Control

1 - Elbow, 90° (3 used)

2 - O-Ring (4 used)

3 - Elbow, 90°

4 - Gauge

5 - Hose, 3/8 x 228 in (5791 mm) (2 used)

6 - Valve

7 - Shut-Off Valve

8 - Elbow, 90°

9 - Bracket

10 - Hose, 3/8 x 52 in (1321 mm) (2 used)

11 - Return

12 - Pressure

13 - O-Ring

14 - Elbow, 90°

Each Hydraulic Wing Control Valve port is labeled to show proper routing. Two ports are labeled TRAC indicating tractor and are interchangeable. Other ports are labeled ROD and BASE and must be connected correctly to fold cylinders.
