Adjust Cylinder Re-Phasing Settings

1.
   N127699-UN-29NOV16


   N127701-UN-29NOV16

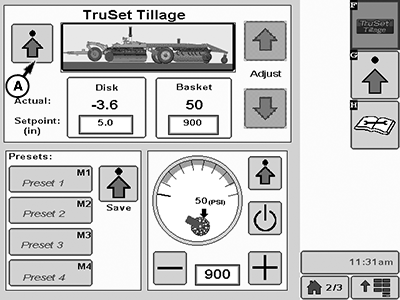

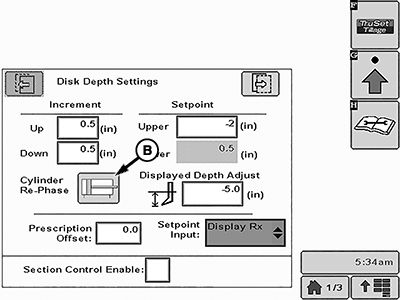

   Depth Settings Adjustment Screen


   N126535-UN-13OCT16

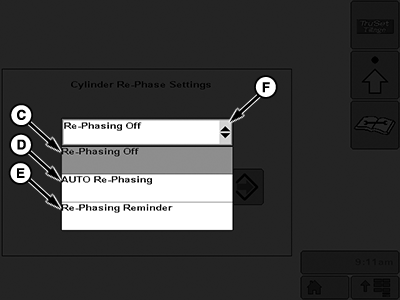

   Cylinder Re-Phase Settings Screen


   N126536-UN-13OCT16

   A - Operational Settings Softkey

   B - Cylinder Re-Phase Softkey

   C - Re-Phasing Off

   D - AUTO Re-Phasing

   E - Re-Phasing Reminder

   F - Drop-Down Menu

   G - Cycles Between Re-Phase Field

   H - Save Softkey

   Press the operational settings softkey (A).

---




2. Press the cylinder re-phase softkey (B).

3. Rephasing depth control cylinders maintains machine leveling and must be done periodically.

   These are settings for rephasing depth control cylinders:

   • Rephasing off (C) is the default setting.
   • AUTO re-phasing setting should only be used if using upper setpoint and raise cycles are performed by clicking the up detent. Machine fully raises and rephases the cylinders once the number of cycles between rephase (G) is exceeded.
   • Re-phasing reminder setting displays a reminder to fully raise and rephase cylinders once the number of cycles between rephase (G) is exceeded.



   Select the desired function (C, D, or E) and using drop-down menu (F).

4. Enter the number of cycles between rephase (G) using keypad.

5. Press the save softkey (H) to return to the previous screen.
