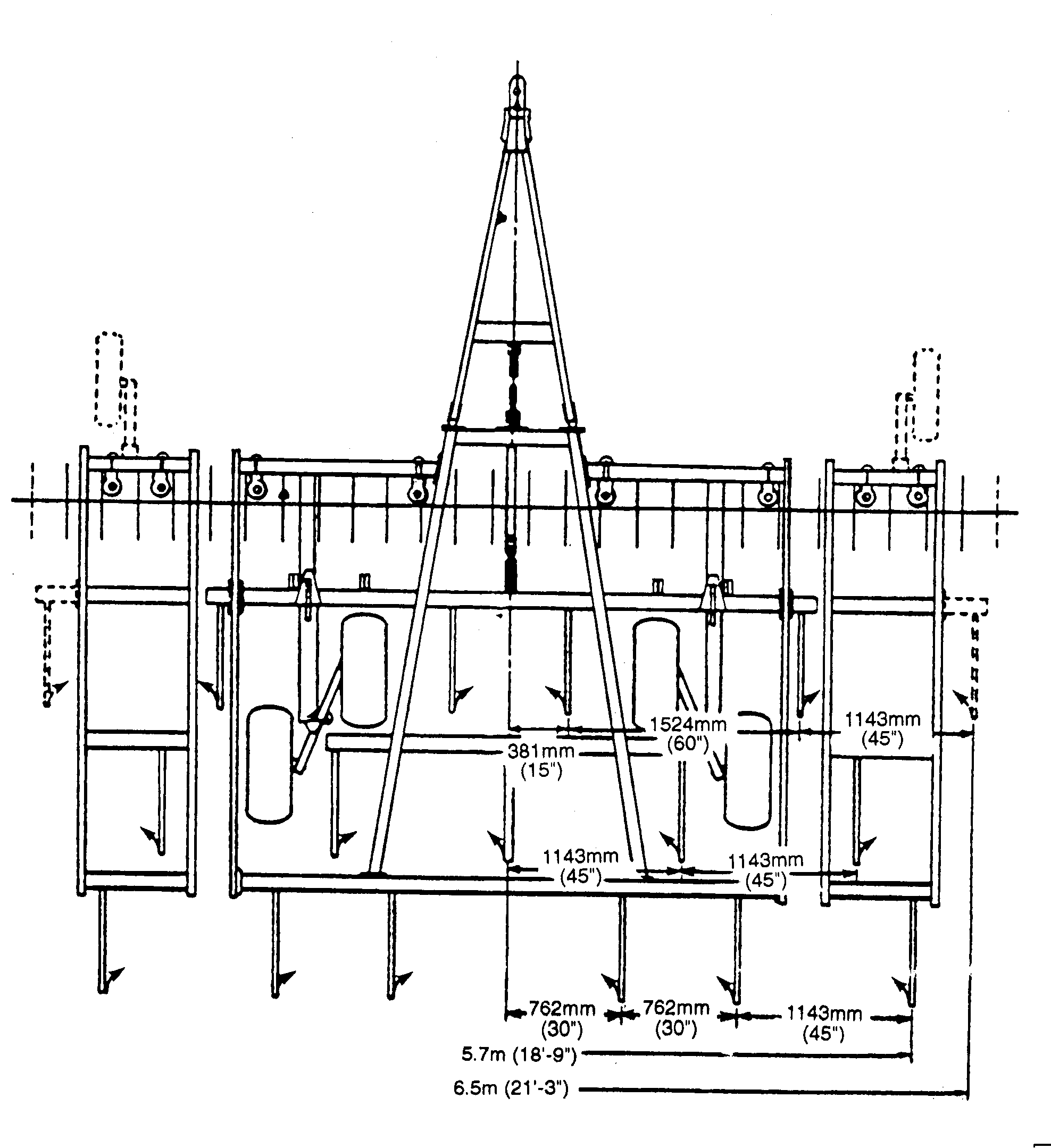

Standard Spacing Diagram—5.7 And 6.5 M (18 Ft 9 In. And 21 Ft 3 In.) Rigid Fold Models With Coulter Gangs

N42152CG-UN-01OCT93

NOTE: Arrows indicate locations of right-hand and left-hand twisted shovels. Using twisted shovels requires ordering an extra left-hand shovel to make total an odd number.
