Positioning Sway Blocks—Integral

RW27008-UN-19JUL00

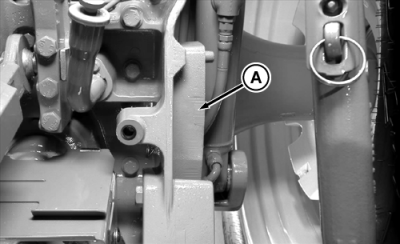

A - Sway Blocks

When using machine with four-wheel drive tractor or trac-drive tractor with Category III hitch, it may be desirable to place sway blocks (A) and bumpers in IIIN position for some side sway so minor steering corrections do not affect machine's performance. (See your tractor Operator's Manual for additional information.)
