Attaching Machine to Tractor—Integral

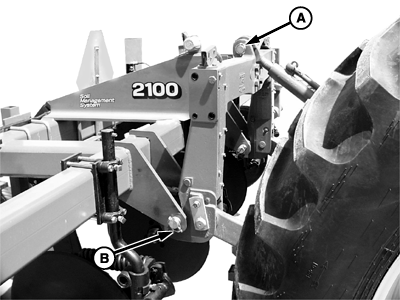

N56790
N56790-UN-15MAY01

A - Mast Pin

B - Hitch Pin

CAUTION: To prevent serious injury or death to you or others when attaching machine to tractor:

  • Do not use external raise/lower switches until tractor transmission is placed in PARK to prevent tractor movement.
  • Stay clear of potential crush points when using external raise/lower switches. Some potential crush points are between hitch components and machine, hitch components and tractor, machine and tractor tires, and machine and ground.
  • Stay clear of machine and engage lock latch handles only after quick-couplers are engaged.

NOTE: It may be necessary to lengthen center link to attach machine. If so, be sure to reset center link to proper length.

  1. Back tractor until quick-coupler upper hook passes under mast pin (A).

  2. Raise quick-coupler with tractor rockshaft control lever until hitch pins (B) are resting in quick-coupler lower hooks.

  3. Raise machine 50 mm (2 in.) off ground, and lock quick-coupler latch handles.

  4. NOTE: 3 and 4-Standard machines have one parking stand. 5, 7, and 9-Standard machines have two stands.

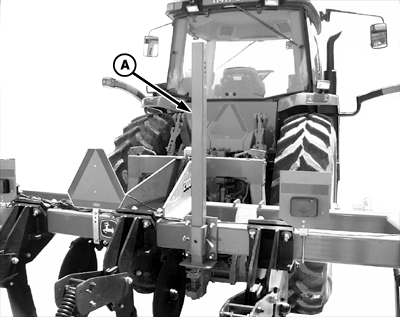

    N56788
    N56788-UN-15MAY01

    A - Parking Stand

    Raise parking stand (A). Retain parking stand with retaining pin and spring clip.


  5. CAUTION: When transporting machine on a road or highway at night or during day, use lights and devices for adequate warning to operators of other vehicles. Check local governmental regulations. Various safety lights and devices are available from your John Deere dealer. Keep safety items in good condition. Replace missing or damaged items.

    N42181VM
    N42181VM-UN-17DEC97

    John Deere 8000 and 9000 Series Tractors

    A - Warning Light Plug

    5, 7, and 9-Standard Machines—Plug warning light plug (A) in tractor outlet. If tractor is not equipped with outlet, see your John Deere dealer for a 7-terminal Auxiliary Electric kit.


  6. CAUTION: Escaping fluid under pressure can penetrate skin causing serious injury. Avoid hazard by relieving pressure before disconnecting hydraulic or other lines. Tighten all connections before applying pressure. Search for leaks with a piece of cardboard. Protect hands and body from high pressure fluids.

    If an accident occurs, see a doctor immediately. Any fluid injected in skin must be surgically removed within a few hours or gangrene may result. Doctors unfamiliar with this type of injury should reference a knowledgeable medical source. Such information is available from Deere & Company Medical Department in Moline, Illinois, U.S.A.

    Hoses can fail due to physical damage, kinks, age, and exposure. Check hoses regularly. Replace damaged hoses.

    IMPORTANT: All couplers must be clear of debris, dust, and sand. Use protective caps on fluid openings until ready to make connection. Foreign material can damage hydraulic system.

    Correctly attach hoses to couplers. If hose connections are reversed, machine will not respond to electronic controls (if equipped).

    X9811
    X9811-UN-23AUG88

    N48100
    N48100-UN-18DEC01

    SCV Couplers

    9-Standard Folding Machine—Attach wing-fold hoses to SCV II couplers. Pressure hose with DOUBLE tie bands is always attached to LEFT-HAND coupler.

AG,OUO6056,380-19-20030424
