Positioning Drawbar—Integral

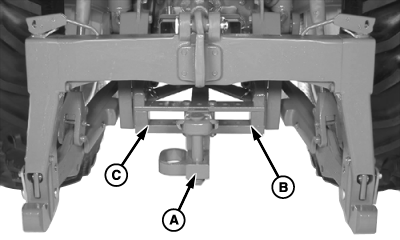

N57206-UN-06JUN01

A - Drawbar

B - Right-hand Side

C - Left-hand Side

IMPORTANT: On some tractor models, drawbar must be removed to prevent machine interference and damage.

NOTE: For heavier residue, it is important to remove drawbar.

If necessary, remove tractor drawbar or place drawbar (A) in short, high position. Set drawbar to extreme right-hand (B) or left-hand (C) side of support.
