Using Depth Control, John Deere 7000, 8000, and 9000 Series Tractors—Integral

N42188AK-UN-09FEB98

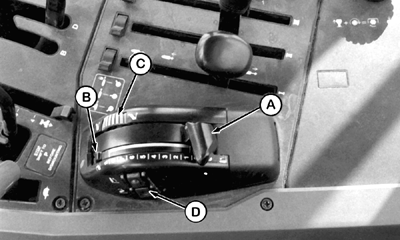

John Deere 7000 Series Tractor

N48147-UN-27JUN94

John Deere 8000 and 9000 Series Tractors

A - Hitch Control Lever

B - Stop

C - Stop Wheel

D - Raise/Lower Switch

Hitch control lever (A) is used to raise and lower hitch and to set machine working depth. Pull lever rearward to raise; push lever forward to lower.

To set machine working depth, move stop (B) against lever by turning stop wheel (C). Hitch will lower to same working depth each time. If it is necessary to lower hitch below preset depth, control lever can be lifted and pushed past stop.

Raise/lower switch (D) allows raising and lowering during turns without having to move hitch control lever.

NOTE: Be sure 3-point hitch links are adjusted properly. If links are not adjusted correctly, desired working depth may not be attained. (See your tractor Operator's Manual.)
