Resetting Standards

N39109-UN-30MAR89

N78124-UN-18OCT07

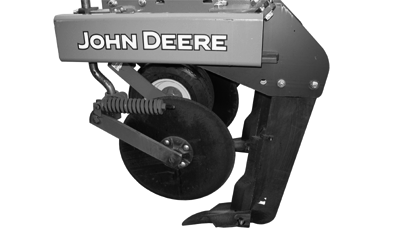

Shear Bolt Standard

N59976-UN-25APR02

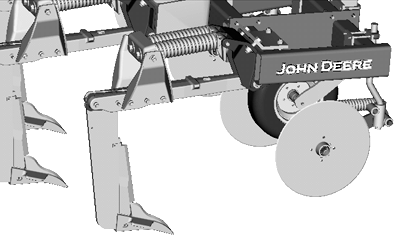

Cushion Trip Standard

IMPORTANT: To prevent damage to main frame, always use recommended shear bolt size and grade.

To reset shear bolt or cushion trip standard, raise machine to transport position. Install new shear bolt. (See REPLACING SHEAR BOLT—STANDARDS in Service section.)
