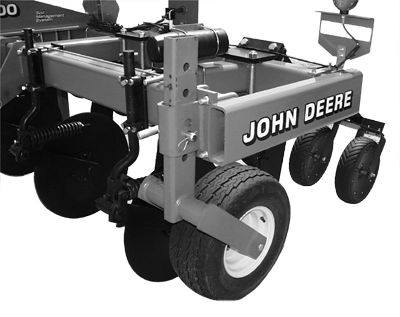

Adjusting Stabilizer Wheels—If Equipped

N56792
N56792-UN-15MAY01

Stabilizer wheels maintain lateral leveling of machine over uneven terrain. Tractor hydraulic system is meant to control depth of integral machine. Depth control wheels and gauge wheels are meant to control depth of drawn machine.

  1. Integral Machine—Set 3-point hitch lift links for lateral float. (See your tractor Operator's Manual.)

  2. With stabilizer wheels raised UP, lower standards in ground to set working depth.

  3. Stop tractor and lower stabilizer wheels to ground, making sure all wheels are set at same height.

AG,OUO6056,674-19-20030428
