Making Proper Hose Connections

CAUTION: Escaping fluid under pressure can penetrate skin causing serious injury. Avoid hazard by relieving pressure before disconnecting hydraulic or other lines. Tighten all connections before applying pressure. Search for leaks with a piece of cardboard. Protect hands and body from high-pressure fluids.

If an accident occurs, see a doctor immediately. Any fluid injected in skin must be surgically removed within a few hours or gangrene may result. Doctors unfamiliar with this type of injury should reference a knowledgeable medical source. Such information is available from Deere & Company Medical Department in Moline, Illinois, U.S.A.

CAUTION: Hydraulic hoses can fail due to physical damage, kinks, age and exposure. Check hoses regularly. Replace damaged hoses.

IMPORTANT: All hydraulic couplers must be clear of debris, dust, and sand. Use protective caps on fluid openings until ready to make connection. Foreign material can damage hydraulic system.

X9811-UN-23AUG88

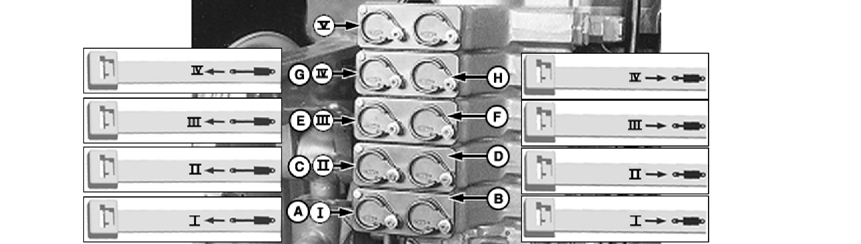

N70266-UN-29JUL05

Legend	Tie Band	Type	Color	SCV Usage
A	I	Pressure	Green	Depth Pressure
B	I	Return	Green	Depth Return
C	II	Pressure	Yellow	Wing Fold Pressure
D	II	Return	Yellow	Wing Fold Return
E	III	Pressure	Blue	Rear Attachment or Disk Hydraulic Leveling or Gang Pressure
F	III	Return	Blue	Rear Attachment or Disk Hydraulic Leveling or Gang Return
G	IV	Pressure	Red	Disk-Rear Attachment or Narrow Transport Gang Pressure
H	IV	Return	Red	Disk-Rear Attachment or Narrow Transport Gang Return

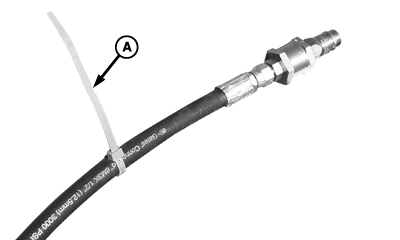

N70695-UN-22AUG05

A - SCV Tie Band

Depth control hydraulic hoses are marked with GREEN tie bands. Wing-fold hydraulic hoses are marked with YELLOW tie bands. Refer to specific color tie band for correct SCV outlet.

Identify correct color tie band either pressure or return and attach to correct SCV outlet.
