Using Implement Management System—If Equipped

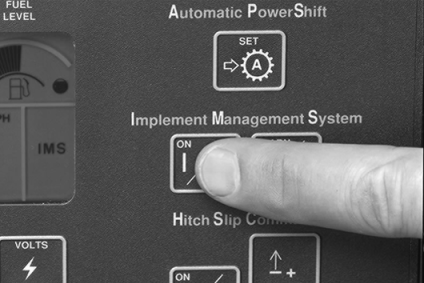

RW26310-UN-24JUN99

If equipped with Implement Management System (IMS), multiple tasks can be performed with touch of one switch.

IMS has two sequences in which to store learned functions. A sequence is defined as start of first recorded function to completion of last recorded function.

NOTE: Tractor must be moving to program or execute a sequence. Learned sequences will remain stored after engine stops.

A sequence is executed according to distance required to perform a series of functions when system is in LEARN mode. A maximum of 12 functions can be learned for each sequence. (See your tractor Operator's Manual for complete IMS and Auto Shift operating functions.)

Item	Function(s)
Hitch	RAISE/LOWER
TOUCHSET™ Depth Control	UP/DOWN
Transmission Gear	Upshift or Downshift in Forward Gear
Auto Shift	CANCEL, RESUME
SCV	Detent EXTEND, Detent RETRACT, Float ON, and CANCEL
MFWD	ON/AUTO, OFF
PTO	OFF
Differential Lock	ON/OFF
