Stabilizer Wheels Inline with Coulters on Frame Extensions—7 and 9-Standard Rigid Machines

NOTE: For inline ripping between rows, 7 and 9-Standard rigid machines with 762 (30 in.) or 914 mm (36 in.) row spacing can have stabilizer wheels on frame extensions attached inline with coulters.

Stabilizer wheels inline with coulters allows users to update gauge wheels to make them inline with ripper shank which eliminates tire track.

1. CAUTION: Setback bars are heavy and awkward and can cause serious injury to you or others. Use proper lifting equipment while attaching.

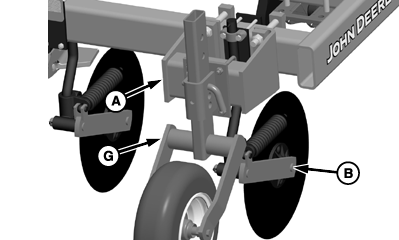

   NOTE: For inline ripping between rows, attach stabilizer wheels inline with coulters on frame extensions.


   N69099-UN-23FEB05


   N69100-UN-23FEB05


   N69122-UN-17MAR05

   A - Setback Bar

   B - Coulter

   C - Frame Extension

   D - Cap Screw, 1 x 9 in., Grade 8 (4 Used) for 7-Standard Frame Extension; Cap Screw, 1 x 9 in., Grade 8 (4 Used) for 9-Standard Frame Extension

   E - Strap (4 Used)

   F - Lock Nut (4 Used)

   G - Stabilizer Wheel

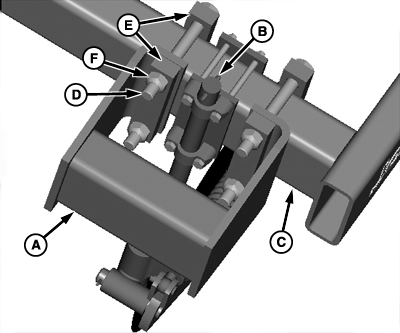

   Center setback bar (A) to coulter (B).

---




2. Attach setback bar to frame extension (C) using cap screws (D), straps (E), and lock nuts (F).

3. Tighten cap screws, not nuts, to specification.

   Item	Measurement	Specification
   Cap Screws	Torque	441 N·m (325 lb-ft)

4. Repeat process for setback bar on other frame extension.

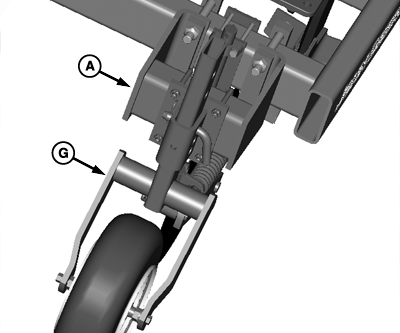

5. Attach stabilizer wheel (G) to setback bar.
