Replacing Cast EXTREME LASERRIP™ Ripper Points

N78104-UN-02OCT07

A - Cast EXTREME LASERRIP Point, 254 mm (10 in.)

B - Cast EXTREME LASERRIP Point, 178 mm (7 in.)

C - Cast EXTREME LASERRIP Point, 127 mm (5 in.)

D - Cast EXTREME LASERRIP Point, 58 mm (2-3/4 in.)

1. IMPORTANT: Verify John Deere trademark JD (E) is centered and at ripper point top when installed to standard. Wing tapers (F) MUST point down.

   NOTE: Flange cap screw and flange lock nut retain to STANDARD ONLY. Flange cap screw head and flange lock nut insure ripper point retention on standard.

   Install EXTREME LASERRIP ripper point (A) to standard (B) using flange head cap screw (C) and flange lock nut (D). Verify John Deere trademark JD is centered and at ripper point top when installed. Wing tapers (F) MUST point down.


   N70711-UN-18AUG05


   N70712-UN-09AUG05


   N70713-UN-09AUG05


   N77844-UN-18SEP07

   JD-John Deere Trademark Must Be Centered and At Top of Ripper Point

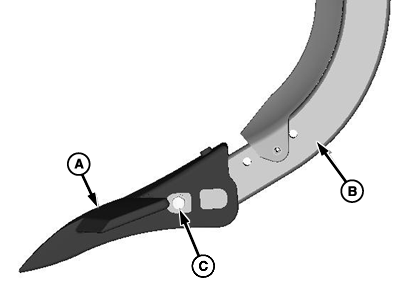

   A - EXTREME LASERRIP Ripper Point

   B - Shank

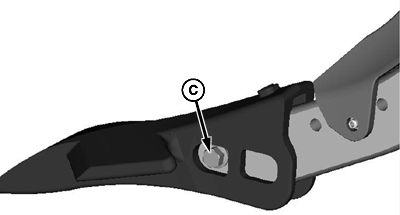

   C - Flange Head Cap Screw

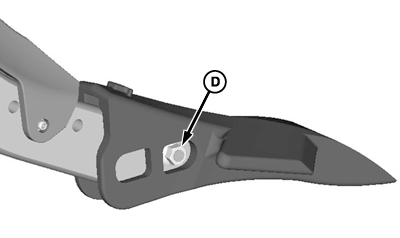

   D - Flange Lock Nut

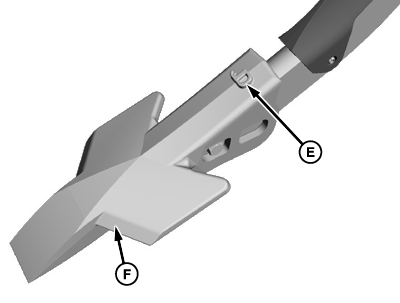

   E - John Deere Trademark—JD

   F - Wing Taper Points Down

---




2. IMPORTANT: To ensure proper installation, use one of these combinations of special tools to install 10 in. EXTREME LASERRIP points.


   N70715-UN-18AUG05

   Two 3/8 in. Drive Ratchets


   N70716-UN-18AUG05

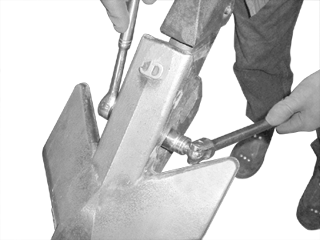

   3/8 in. Drive Ratchet And Breaker Bar


   N70717-UN-18AUG05

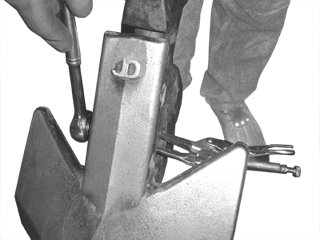

   3/8 in. Drive Ratchet Or Breaker Bar And Needle Nose Locking Pliers

   Tighten flange lock nut to specification.

   Item	Measurement	Specification
   Flange Lock Nut	Torque	155 N·m (115 lb-ft)

---
