Adjusting Closing Wheels Down Pressure—If Equipped

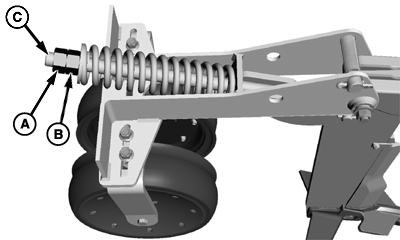

N78047-UN-18OCT07

A - Jam Nut

B - Nut

C - Spring Rod

IMPORTANT: Verify nut (A) is fully engaged on spring rod threads when using minimum down force setting.

Closing wheel down pressure is preset at regular standard pressure from factory. To increase or decrease down pressure loosen jam nut (A) and nut (B). Turn nut (B) clockwise to increase down pressure and counterclockwise to decrease down pressure as needed. Retighten jam nut to specification.

Item	Measurement	Specification
Nut	Torque	271 N·m (200 lb-ft)
