Replacing Ripper Points—32 mm (1-1/4 in.) Standards

1. NOTE: Six types of ripper points are available. (See OPTIONAL RIPPER POINTS FOR 32 mm (1-1/4 In.) STANDARDS in Service section.)

   Plain, single capped, and double capped ripper points use 1/2 x 2-1/2 in. Grade 8 flange cap screws (A) and flange lock nuts.

   LASERRIP™ points use 1/2 x 3-1/4 in. Grade 8 flange cap screws and flange lock nuts.

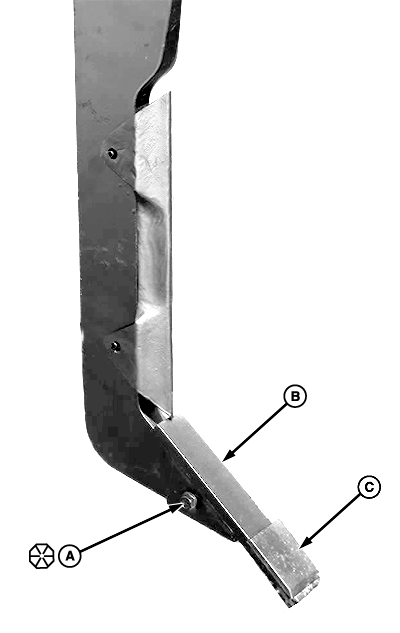

   N78048-UN-27SEP07

   A - Flange Cap Screw, Grade 8, 1/2 x 2-1/2 in. or Flange Cap Screw, Grade 8, 1/2 x 3-1/4 in.

   B - Ripper Point

   C - Ripper Point End—Attached Correctly

   Remove flange cap screw and flange lock nut. Retain hardware.

---




2. Remove ripper point (B).

3. IMPORTANT: Verify ripper point is correctly attached with ripper point end (C) on TOP and pointing down as shown.

   Do not overtighten Grade 8 flange cap screw and flange lock nut. Cap screw must turn freely at all times.

   Attach new ripper point with flange cap screw and flange lock nut.
