Adjusting Closing Wheels—If Equipped

1. IMPORTANT: To prevent damage to wheels, do not operate at an angle in hard or extremely wet soil conditions.

   NOTE: Closing wheel down pressure is preset at regular standard pressure from factory.

   Wheels can be assembled with center-to-center spacing of 0—203 mm (0—8 in.) and angled from 0—10° in either direction. As a good starting position, set wheel spacing at 127 mm (5 in.) and angle at 0° (facing straight ahead).

   For narrow and wide wheel spacings with wheels facing straight ahead, place 5/8 x 1-3/4 in. Grade 5 Carriage bolts (B) in holes (C) and (E).

   For mid-range wheel spacings with wheels facing straight ahead or set at an angle, place Carriage bolts in slots (D) and (E).

   NOTE: Carriage bolts must be inserted from the bottom so flange nuts face upward.

   Loosen 5/8 in. lock nuts on Carriage bolts.


   N78045-UN-27SEP07


   N78046-UN-27SEP07


   N78122-UN-17OCT07

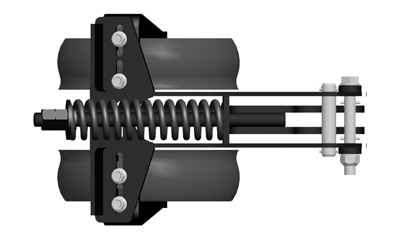

   Closing Wheels Straight


   N78123-UN-17OCT07

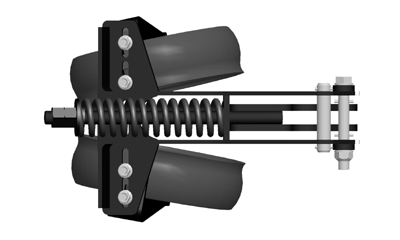

   Closing Wheels Angled

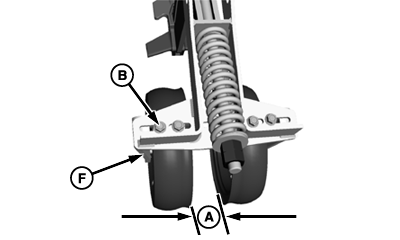

   A - Center-to-Center Spacing

   B - Carriage Bolts, Grade 5, 5/8 x 1-3/4 in. (4 Used)

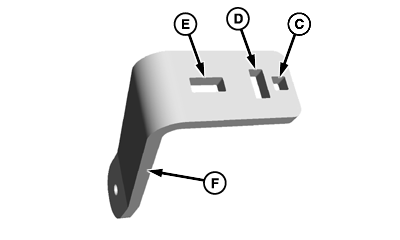

   C - Hole

   D - Slot

   E - Slot

   F - Wheel Support Brackets (2 Used)

---




2. Slide wheel support brackets (F) in slots to adjust wheel center-to-center spacing and angle.

3. Tighten flange lock nuts to specification.

   Item	Measurement	Specification
   Lock Nuts, 5/8 in.	Torque	217 N˙m (160 lb-ft)
