Detaching Machine from Tractor—Integral

CAUTION:

N39083
N39083-UN-30MAR89

To prevent serious injury or death to you or others due to falling machine:
  • Always stand clear of machine when raising or lowering parking stand (A).
  • Always park on hard, level surface. When machine is detached from tractor, parking stand must hold machine level with horizon. To level machine, select correct hole in top of parking stand for retaining pin.
  • Before unhitching machine from tractor, lower machine to ground to prevent accidental movement.

  1. IMPORTANT: When lowering machine on hard surface, lower it slowly to help prevent damage to ripper points.

    N56789
    N56789-UN-15MAY01

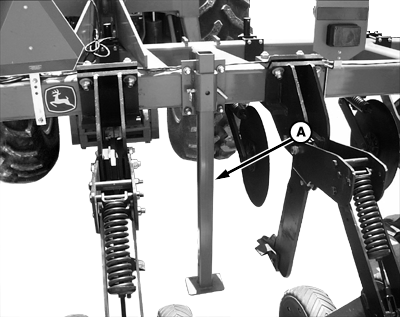

    A - Parking Stand

    Lower machine so ripper points are 50 mm (2 in.) above ground.


  2. NOTE: 3 and 4-Standard machines have one parking stand. 5, 7, and 9-Standard machines have two stands.

    Lower parking stand (A) to ground. Retain parking stand with retaining pin and spring clip.

  3. Lower machine to ground.

  4. 5, 7, and 9-Standard Machines—Detach machine warning light plug (A) from tractor, and place plug in receptacle (B).

    N42181VM
    N42181VM-UN-17DEC97

    John Deere 8000 and 9000 Series Tractors

    N62637
    N62637-UN-20MAY03

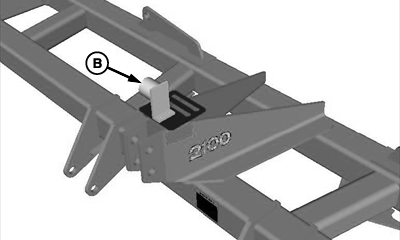

    A - Warning Light Plug

    B - Receptacle


  5. CAUTION: Escaping fluid under pressure can penetrate skin causing serious injury. Avoid hazard by relieving pressure before disconnecting hydraulic or other lines. Tighten all connections before applying pressure. Search for leaks with a piece of cardboard. Protect hands and body from high pressure fluids.

    If an accident occurs, see a doctor immediately. Any fluid injected in skin must be surgically removed within a few hours or gangrene may result. Doctors unfamiliar with this type of injury should reference a knowledgeable medical source. Such information is available from Deere & Company Medical Department in Moline, Illinois, U.S.A.

    Hoses can fail due to physical damage, kinks, age, and exposure. Check hoses regularly. Replace damaged hoses.

    To avoid serious injury to you, never attempt to disconnect hydraulic hoses under pressure. SCV II lever must be in NEUTRAL position before disconnecting hoses to prevent a sudden accident.

    IMPORTANT: All couplers must be clear of debris, dust, and sand. Use protective caps on fluid openings until ready to make connection. Foreign material can damage hydraulic system.

    X9811
    X9811-UN-23AUG88

    N48108
    N48108-UN-17DEC01

    John Deere 8000 and 9000 Series Tractors

    N62647
    N62647-UN-20MAY03

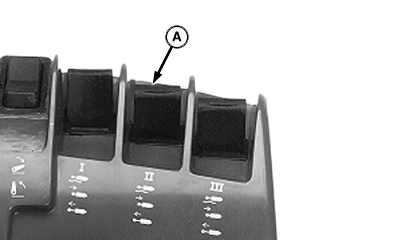

    A - SCV II Lever

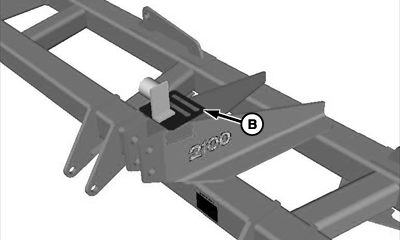

    B - Hose Holder

    Place SCV II lever (A) in NEUTRAL position.


  6. 9-Standard Folding Machine—Disconnect wing-fold hoses from tractor couplers, and place hoses in hose holder (B).

  7. Detach machine from tractor, and drive tractor forward.
