Replacing Wear Shins—32 mm (1-1/4 in.) Standards

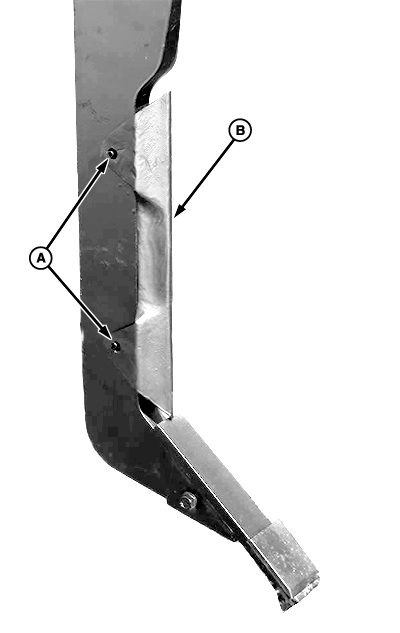

  1. N59981
    N59981-UN-25APR02

    A - Spring Pins

    B - New Wear Shin

    Remove and discard two spring pins (A).


  2. Discard old wear shin.

  3. Attach new wear shin (B) with two new 3/8 x 2-1/4 in. spring pins.

OUO6084,00001DC-19-20030501
