Using External Raise/Lower Rockshaft Switches—Integral

CAUTION:

N59988-UN-02MAY02

N59989-UN-08JUL10

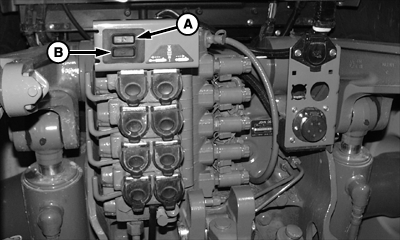

A - Raise Switch

B - Lower Switch

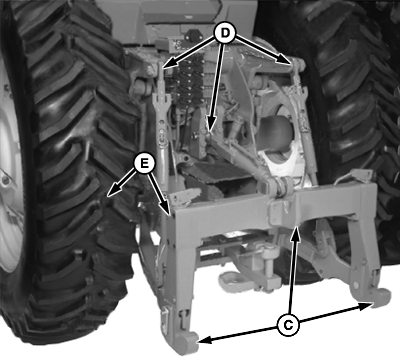

C - Hitch Component/Machine Interference Points

D - Hitch Component/Tractor Interference Points

E - Machine/Tractor Tire Interference Points

• Do not use raise switch (A) and lower switch (B) until tractor transmission is placed in PARK to prevent tractor movement.
• Stay clear of potential crush points when using switches. Some potential crush points are between hitch components and machine (C), hitch components and tractor (D), machine and tractor tires (E), and machine and ground.

Raise/lower switches allow raising and lowering of rockshaft from tractor rear. Push and hold switches to move rockshaft. Release switches to stop rockshaft movement.

While switches are used, rockshaft control system is reset. To enable system, move rockshaft control lever or raise/lower limit switch.
