Positioning Drawbar—Drawn

N39084-UN-30MAR89

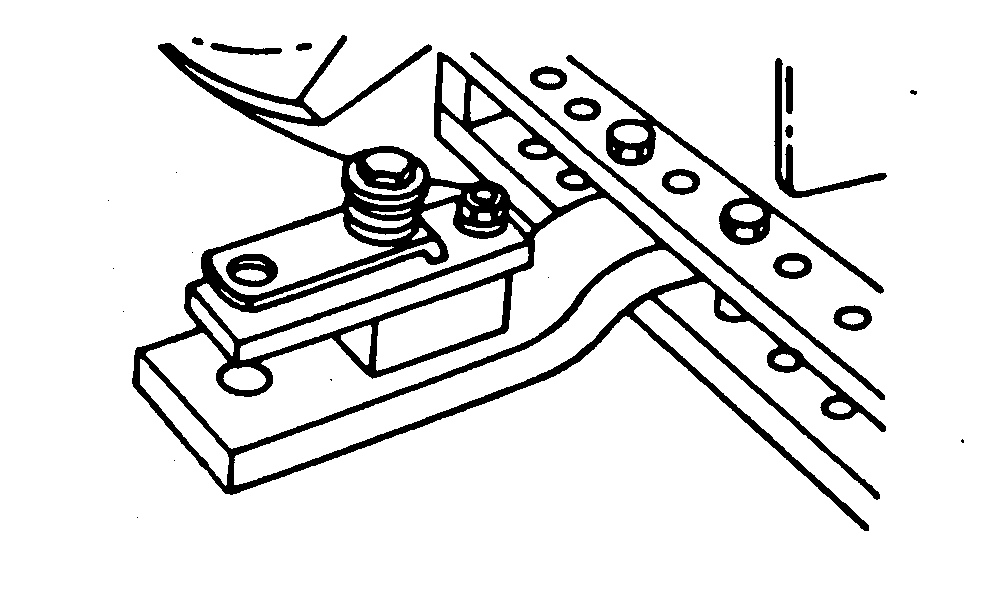

N43094-UN-25APR91

CAUTION: Machine steering control loss can cause serious injury or death to you or others. To TRANSPORT machine, always pin drawbar in centered position for ALL tractors.

IMPORTANT: For FIELD OPERATION, drawbar must be positioned correctly to prevent hitch damage.

Two-wheel Drive Tractors, Four-wheel Drive and Trac-drive Tractors—Place drawbar in fixed, centered, and down position for FIELD OPERATION and TRANSPORT.

Wide-swing Drawbar—Remove stop blocks, and place blocks on storage brackets for FIELD OPERATION ONLY. Place drawbar in fixed, centered position for TRANSPORT ONLY.
