Preparing Hydraulic System

  1. Check hydraulic oil level. Fill if necessary.

  2. N62636
    N62636-UN-06MAY03

    A - SCV II Selector Button

    B - Flow Control Knob

    C - Time Detent Knob

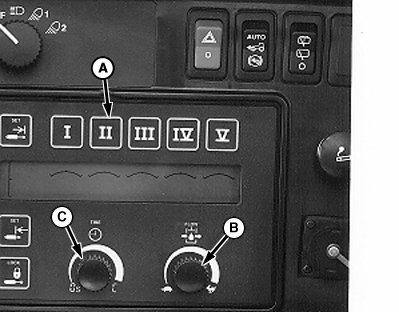

    Wing Fold/Unfold—Press SCV II selector button (A) and turn flow control knob (B) to fast (rabbit) position.


  3. Turn time detent knob (C) until display reads 19 seconds. If this is not enough time to completely fold/unfold wings, time detent button (C) may be set to continuous. However, tractor hydraulic pump will continue to operate after fold/unfold cylinders have stopped moving. This is normal and not harmful. However, shutting off pump by moving SCV lever to any position after lever has returned to NEUTRAL is recommended.

  4. N48104
    N48104-UN-01JUN94

    A - SCV I Selector Button

    B - Flow Control Knob

    C - Time Detent Knob

    Depth Control—Press SCV I selector button (A) and turn flow control knob (B) to rabbit position for initial setting (can be adjusted to desired flow rate during implement use).

OUO6084,000043C-19-20030424
