Checking Depth Control and Stabilizer Wheel Bolts and Bearings—Drawn

N50101-UN-08FEB99

Tighten Wheel Bolts—Depth Control

N78044-UN-27SEP07

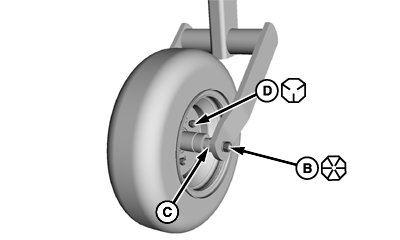

Tighten Wheel Bolts—Stabilizer Wheel

A - Wheel Bolts, Depth Control

B - Nut and Cap Screw

C - Shoulder Nut

D - Wheel Bolts, Stabilizer Wheel

Tighten wheel bolts to specification.

Item	Measurement	Specification
(A) Wheel Bolt, Grade 5	Torque	176 N˙m (130 lb-ft)

Adjust Depth Control Wheel Bearing—Remove center hub cap and cotter pin. Raise wheel and turn it. Tighten nut until there is a slight drag on bearings, back off to first hole, and insert cotter pin. Replace hub cap.

Adjust Stabilizer Wheel Bearing—Remove nut and cap screw (B) and remove wheel between arms. Raise wheel and turn it. Tighten shoulder nut (C) until there is a VERY slight drag on bearings. Replace wheel assembly between arms and attach cap screw and nut. Tighten cap screw (B) and wheel bolts (D) to specification.

Item	Measurement	Specification
(B) Stabilizer Wheel Arm Bolt, Grade 8	Torque	203 N˙m (150 lb-ft)

Item	Measurement	Specification
(D) Stabilizer Wheel Bolt, Grade 5	Torque	95 N˙m (70 lb-ft)
