Detaching Machine from Tractor—Drawn

1. CAUTION:


   N39547-UN-06OCT88


   N48108-UN-17DEC01

   John Deere 8000 and 9000 Series Tractors

   A - SCV II Lever

   To prevent serious injury or death to you or others:
   • Keep all persons away from machine when raising and lowering wings.
   • Always locate machine on level ground when raising and lowering wings.
   • Never raise or lower wings when moving.



   With transmission in PARK, pull SCV II lever (A) rearward to raise wings to stops.

---




2. CAUTION: Machine is tongue light. Tongue will whip upwards causing serious injury or death to you or others unless machine is lowered to ground BEFORE removing hitch pin.

   Lower machine to ground.


   N39502-UN-06OCT88


   N66070-UN-17JUN04

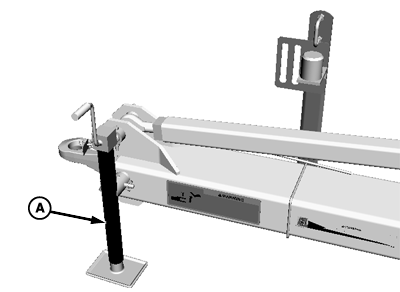

   A - Jack

---




3. Attach jack (A) to hitch using bent pin and quick-lock pin.

4. Turn handle on jack to remove weight from drawbar.

5. Detach machine warning light plug (A) from tractor, and place plug in receptacle (B).


   N42181VM-UN-17DEC97

   John Deere 8000 and 9000 Series Tractors


   N66071-UN-17JUN04

   A - Warning Light Plug

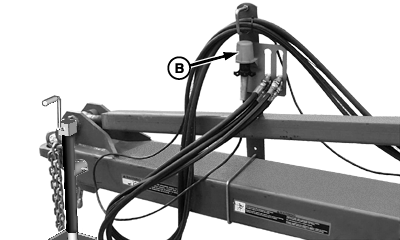

   B - Receptacle

---




6. CAUTION:


   X9811-UN-23AUG88


   N66072-UN-17JUN04

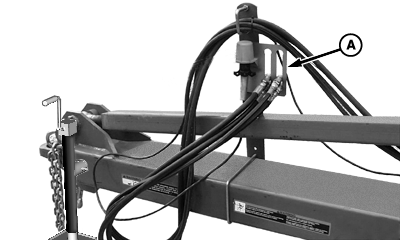

   A - Hose Holder

   Escaping fluid under pressure can penetrate skin causing serious injury. Avoid hazard by relieving pressure before disconnecting hydraulic or other lines. Tighten all connections before applying pressure. Search for leaks with a piece of cardboard. Protect hands and body from high pressure fluids.

   If an accident occurs, see a doctor immediately. Any fluid injected in skin must be surgically removed within a few hours or gangrene may result. Doctors unfamiliar with this type of injury should reference a knowledgeable medical source. Such information is available from Deere & Company Medical Department in Moline, Illinois, U.S.A.

   Hoses can fail due to physical damage, kinks, age, and exposure. Check hoses regularly. Replace damaged hoses.

   To avoid serious injury to you, never attempt to disconnect hydraulic hoses under pressure. SCV I and II levers must be in NEUTRAL positions before disconnecting hoses to prevent a sudden accident.

   IMPORTANT: All couplers must be clear of debris, dust, and sand. Use protective caps on fluid openings until ready to make connection. Foreign material can damage hydraulic system.

   Place SCV I and II levers in NEUTRAL positions.

---




7. Disconnect depth control hoses from tractor couplers, and place hoses in hose holder (A).

8. 9-Standard Folding Machine—Disconnect wing-fold hoses from tractor couplers, and place hoses in hose holder.

9. Remove safety chain from tractor.

10.
    N47738-UN-26FEB97

    A - Hitch Pin

    Verify wheel blocks are in place. Remove hitch pin (A) from drawbar. Drive tractor forward.

---
