Setting Depth Control—Drawn

1. CAUTION: Engage tractor parking brake, place transmission in PARK, shut off engine, and remove key to prevent serious injury or death to you or others before installing or removing depth stops on machine.

   IMPORTANT: To ensure even penetration across machine width, use same number and size of depth stops on both depth control cylinder rods. Uneven penetration results in machine side draft.

   NOTE: 25 mm (1 in.) Thickness of cylinder depth stop equals 76 mm (3 in.) of working depth.

   Number of cylinder depth stops required may vary due to tractor tracks, wheel sinkage, and other variables.

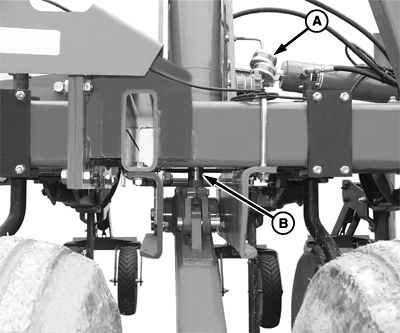

   N65329-UN-07APR04

   Depth Control Cylinder—Right-hand Side

   A - Cylinder Depth Stop

   B - Depth Control Cylinder Rod

   Install cylinder depth stops (A) on depth control cylinder rods (B).

---




2.

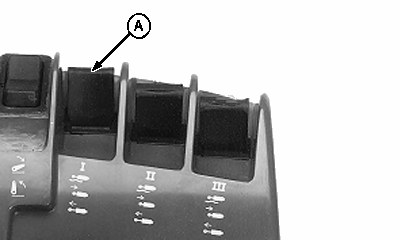

   N49720-UN-31MAR98

   John Deere 8000 and 9000 Series Tractors

   A - SCV I Lever

   Push SCV I lever (A) forward until cylinder rod ends are retracted to cylinder depth stops.

---




3. Operate machine over a test distance.

4. Check for proper machine depth. Adjust, as necessary, by adding or removing cylinder depth stops.

5. Repeat process until desired machine depth is achieved.
